Ae101 Tuning question

[monsh]

hurm, if u really wanna try push the car to the limit, might as well just go for 3sge or 3sgte .
20v bt i dont think u can get much power, someone did built it to 181hp on wheel right?

181whp is more than good enough .
but that's gonna cost more than 50k i guess



[Veloc]

More than 181 whp is possible i guess. Because highest for NA I'e heard is 220 hp. For turbo can 300 hp.

but tuning NA to that mark is very expensive. I would agree 50k might not be enough. And also there is the problem of drivability. going beyond 282 cams, you're gonna have super bad idling, shit emission and shit low end torque.

If you don't mind spending 50 k for a car that idles at 1.5 - 1.8k rpm, sucky performance till 5k rpm and difficult to drive daily, then okay...



[hanracing]

Then if 3s-gte ???



[monsh]

3s-gte is a 2.0 turbo engine .
highest spec u can get is from the caldina gt4 i think .
its 240bhp on stock .

definitely can push even further .

even the 4age turbocharged can go beyond 300whp . and that's only 1.6 .

on the internet even saw a 4a-fe which is originally 103bhp could reach 300whp when turbocharged .

the real question here is whether or not you have the money to spend .
if you're aiming for superior performance, i think it'll even go above 100k .



[3zz]

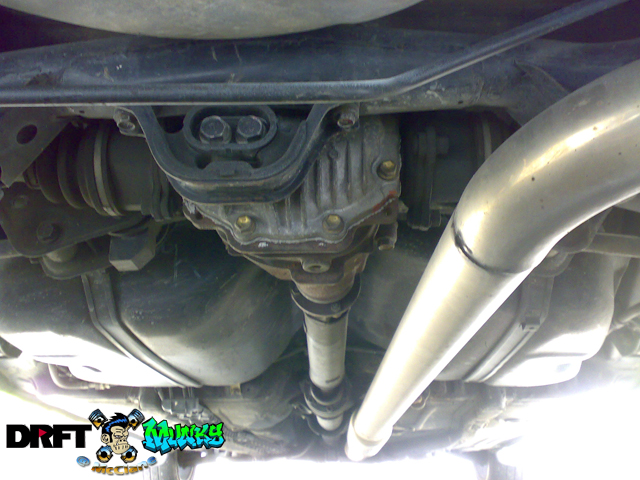

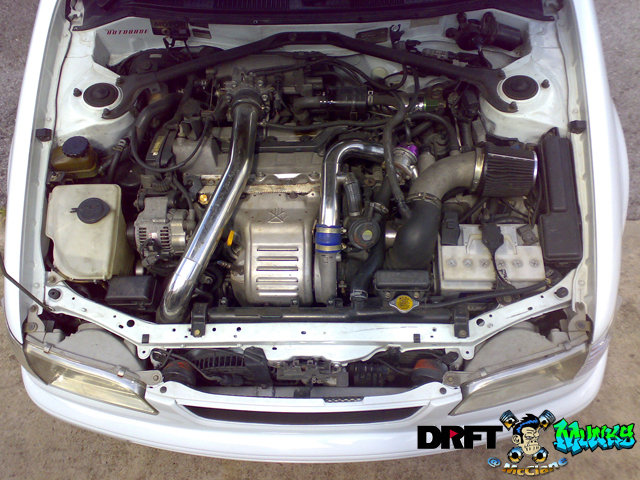

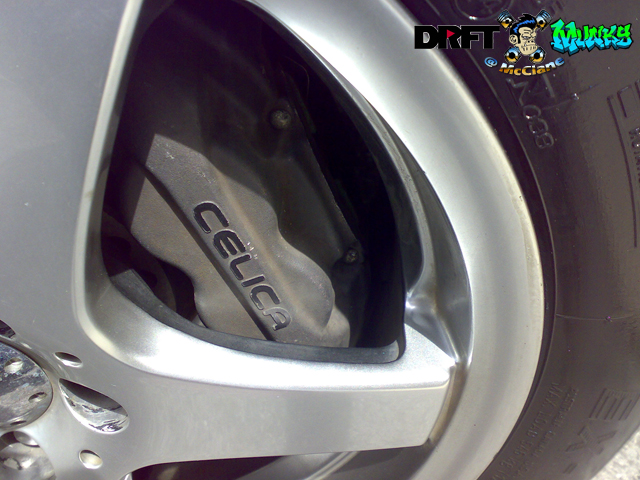

old pic.ae111 3sgte 4wd.made in kuching

http://www.zerotohundred.com/newforums/attachment.php?attachmentid=187541&d=1233201803
http://www.zerotohundred.com/newforums/attachment.php?attachmentid=187543&d=1233201803
http://www.zerotohundred.com/newforums/attachment.php?attachmentid=187540&d=1233201803
http://www.zerotohundred.com/newforums/attachment.php?attachmentid=187542&d=1233201803



[hanracing]

Because my concept is to build a street performance car with all track parts inside like rollcage and racing engine .



[sooieweng]

this is the cost for my blacktop 2 years back, this is only engine price

TM work plug cable - RM450
Denso iridium spark plug - RM200
Head port and polish - RM600
TODA 288 IN/EX cam - RM3500
TODA IN?EX cam Pulley - RM1000
TODA timing belt - RM700
TRD Metal Head Gasket - RM300
Wesley oversize forged 82mm Piston set - RM3000
AE101 Conrod - RM800
King Racing bearing - RM750
engine block bore process - RM700
Engine balancing - RM750
Exedy semi racing clutch - RM1200
Completed set lighten pully (5 pieces, crank, alternator,,,,,,,,) - RM1200
Labour charge - RM750
Adaptronic ECU - RM3500



[hanracing]

how many HP u can tune on wheel ???



[Veloc]

old pic.ae111 3sgte 4wd.made in kuching

http://www.zerotohundred.com/newforums/attachment.php?attachmentid=187541&d=1233201803
http://www.zerotohundred.com/newforums/attachment.php?attachmentid=187543&d=1233201803
http://www.zerotohundred.com/newforums/attachment.php?attachmentid=187540&d=1233201803
http://www.zerotohundred.com/newforums/attachment.php?attachmentid=187542&d=1233201803

Wow looks quite tight in there... Nevertheless... I salute this guy's passion! Love this.



[sooieweng]

how many HP u can tune on wheel ???

on wheel 155whp...on engine +20%...



[KHWONG]

on wheel 155whp...on engine +20%...

not bad result. can i know wat dyno mahcine u taking this result ?

. forged piston can rev higher than 9 k..



[hanracing]

ok,because if the HP can't make it about 200-220.I might change it the engine to 3s-gte .Which I hope it can produce about 450HP -500



[sooieweng]

NA 1.6 is very hard to reach 200HP on wheel...also, u need to think about car weight, corolla SEG consider light weight body....



[Charles]

450-500 on 3S-GTE? very achievable....at a price.



[meg_omen]

order from here if you want above 200hp...
http://www.speedracersportscars.com.au/



[KHWONG]

bro.. he wan over 200hp on wheel.. that only 240hp on engine power output.. still susah to achieve his target after 20-25% discount on wheel. hahahahhahah

too bad..



[20V Trumpeteer]

order from here if you want above 200hp...
http://www.speedracersportscars.com.au/

bro, u put neurotoxin kao-kao on him ka?hahahaha...me juz only dreaming to own those specs..



[monsh]

1950CC ?

more like 2.0 category already .

1.6 200whp NA is definitely superb !

btw, are u really targeting 450-500hp on 3s-gte?

if yes, please open a thread and show us pictures will ya ^^,



[D7zul]

read this 1st..



Bill Sherwood's Modified 4AGE Page

---------- Post added at 02:12 PM ---------- 6 hour anti-bump limit - Previous post was at 02:09 PM ----------

then u read this..



http://www.zerotohundred.com/newfor...modifications-the-dummies-guide-part-1-a.html

http://www.zerotohundred.com/newfor...modifications-the-dummies-guide-part-2-a.html

http://www.zerotohundred.com/newfor...modifications-the-dummies-guide-part-3-a.html

http://www.zerotohundred.com/newfor...modifications-the-dummies-guide-part-4-a.html



[tappetoes]

best thread discussion...
my opinion is..u want otr car + track performance..actually track car are not suppose focussing on engine power..it's about driver skill n car handling(depend on cat)...correct me if i wrong..

if u seriously wan to build na engine..think about your pocket..with the same investment..turbo generate more hp..but if u "stim with high revv engine"..play na..

this link i show akira iida build 20v but diff body..
http://www.club4ag.com/faq_and_tech_pages/iida%20ae86%20project.htm

this link is ae92 toda 4age 20v carry out 138kw
http://forum.9000rpm.co.za/viewtopic.php?id=8247

maybe can help u to build na engine...but if u choose turbocharged..u hav a diff feel..
ask urself..

---------- Post added at 02:13 AM ---------- 6 hour anti-bump limit - Previous post was at 02:13 AM ----------

best thread discussion...
my opinion is..u want otr car + track performance..actually track car are not suppose focussing on engine power..it's about driver skill n car handling(depend on cat)...correct me if i wrong..

if u seriously wan to build na engine..think about your pocket..with the same investment..turbo generate more hp..but if u "stim with high revv engine"..play na..

this link i show akira iida build 20v but diff body..
http://www.club4ag.com/faq_and_tech_pages/iida%20ae86%20project.htm

this link is ae92 toda 4age 20v carry out 138kw
http://forum.9000rpm.co.za/viewtopic.php?id=8247

maybe can help u to build na engine...but if u choose turbocharged..u hav a diff feel..
ask urself..
