what bush is this?

[mokh]

Hi all...

my ride have lots of noises coming from the front chassis esp when hitting bumps and stupik holes.

last week i change the front upper ball joint and during that i found this bushing worn out badly.
-refer attachment

what is the name of this bush?
where can i get it replace?
estimate cost?

thanks



[hulkv6tt]

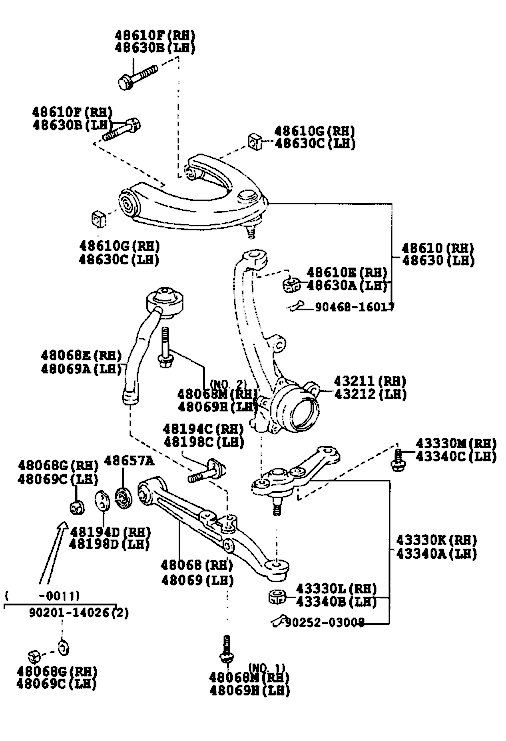

bro, pls refer to the diagram, and from my experience...u need need to replace the who;e unit unless u r able to source aftermarket bushing for the replacement.....cheers!!



[G221]

bro mokh,

I'm selling Superpro bushes. will let u know which area of bushes in the pics. give me ur email as well, will email the whole pricing for Altezza.

SuperPro Europe Ltd - European Distributors for SuperPro Polyurethane Suspension Bushes | SuperPro Europe Ltd.



[mokh]

oh..thnks.

email @ mm.mokhtar#gmail.com

hom much different (technical) superpro bushes compare with the stock? im just looking for stock replacement btw.



[G221]

will email later.

Superpro.. Improved handling and stability, Long life, low maintenance, Increased tyre and suspension life, less vibration and road noise compared to stocks.



[mokh]

SuperPro dont have this bush..
the only option left so far is TRD. the name and part no. for this bush is Front lower arm bush No.2 48655-SE100.
price in japan around RM90.00 only

now, where to get it from here?



[G221]

try Wing Hin bro...



[shauqi_wax123]

where's ur location bro?...if u r in KL,u might as well contact William ay riyoz racing..he has every single thing for altezza..juz my 2 cents.. :)



[mokh]

Im in jb.
Wing hin have it.Rm115 per pc.(TRD).

Will check Trial later.but dont think trial will be any cheaper.



[G221]

Trial will order from Wing Hin bro..go direct la..



[gti-wly]

from my experience.. OEM Toyota comes together with the lower arm.. if just for the bushing, can change to TRD...



[mokh]

will direct to wing hin for the bush..thanks

btw, anyone here ever changed other bushes in lump sum? just the OEM bushes.
i wonder the total cost...
