manual boost controller, need help

chaf

Active Member
Senior Member

chaf

Active Member
Senior Member
Aug 30, 2007
33
1
1,508
im using it..... tat's a hose connected to ur internal actuator....
tap from there....


speed2horizon

2,000 RPM
Senior Member

speed2horizon

2,000 RPM
Senior Member
Jun 4, 2006
2,798
334
1,683
im using it..... tat's a hose connected to ur internal actuator....
tap from there....
For stock turbo with actuator.
U cut the hose from the intercooler piping/turbo outlet to the actuator, install the Boost controller there. follow the arrow.


nuarz_87

Junior Member

nuarz_87

Junior Member
Jul 11, 2010
15
0
501
Kuala Lumpur
tanks dude, but i'm using tial external waste gate, it is ok to use original air filter for up boost? help
throw away ur actuator
u use dirct hose to waste gate also can
-better change air filter apexi or hks u can hear diffrent sound :driver:

ur wastegate how many mm 35 or 38

Last edited:

speed2horizon

2,000 RPM
Senior Member

speed2horizon

2,000 RPM
Senior Member
Jun 4, 2006
2,798
334
1,683
tanks dude, but i'm using tial external waste gate, it is ok to use original air filter for up boost? help
Ok, u get the hose that connects the intercooler piping/turbo outlet to the wastegate and have the boost controller connected there.

2 different way.

If the hose is connected to the bottom port of the wastegate, then u do as mentioned on top. U increase the boost by bleeding out air or opening the controller.

If u have the hose teed and connected to both top and bottom port, then u can connect the top port. But there is some changes in the adjustment. U increase the boost by closing the bleed valve until u achieve ur desired boost.


Mrnazmi

500 RPM
Senior Member

Mrnazmi

500 RPM
Senior Member
Jan 17, 2005
510
29
3,028
Drag City
Visit site
Works Manual Boost Controller ok ka if to play higher boost (up to 1.5 bar)?
Currently using fish bone (tulang ikan), not really accurate, still searching for another manual boost controller that cheaper...:driver:

p/s: If got budget wanna buy Greddy Profec-B II, huhu. But for now manual boost controller is the best option. (no money no higher boosting..:bawling:)


^pomen_GTR^

7,000 RPM
Senior Member

^pomen_GTR^

7,000 RPM
Senior Member
May 13, 2010
7,509
1,690
1,713
The Mines
*wanna ask info on tulang-ikan (aquarium oxygen valve)


-the orientation to install which position???? is it sandwiched between wastegate and boos pressure????

or is it install using "T" which leaks boost pressure to atmosphere before going to wastegate??


speed2horizon

2,000 RPM
Senior Member

speed2horizon

2,000 RPM
Senior Member
Jun 4, 2006
2,798
334
1,683
*wanna ask info on tulang-ikan (aquarium oxygen valve)


-the orientation to install which position???? is it sandwiched between wastegate and boos pressure????

or is it install using "T" which leaks boost pressure to atmosphere before going to wastegate??
No need T. The tulang ikan valve is already bleeding pressure to the ATM.


Mrnazmi

500 RPM
Senior Member

Mrnazmi

500 RPM
Senior Member
Jan 17, 2005
510
29
3,028
Drag City
Visit site
*wanna ask info on tulang-ikan (aquarium oxygen valve)


-the orientation to install which position???? is it sandwiched between wastegate and boos pressure????

or is it install using "T" which leaks boost pressure to atmosphere before going to wastegate??
From wastegate / actuator got one hole there, put the vacuum hose there and join the tulang ikan in the middle of the vacuum hose, and continue the hose to the intercooler piping (make one hole there near to t.body, after the B.O.V. holes)

Please top up some more if my explanation is not clear..hehe.:driver:


Newbienissan

Banned

Newbienissan

Banned
Jul 19, 2010
279
17
518
earth
there is a hose from the exhaust manifold connected to the actuator, T-bridge it, using the 3 valve tulang ikan, keep the valve open by 1.5, and the 3rd one closed. this will give about 0.8 bar boost to ur stock turbo


^pomen_GTR^

7,000 RPM
Senior Member

^pomen_GTR^

7,000 RPM
Senior Member
May 13, 2010
7,509
1,690
1,713
The Mines
No need T. The tulang ikan valve is already bleeding pressure to the ATM.

From wastegate / actuator got one hole there, put the vacuum hose there and join the tulang ikan in the middle of the vacuum hose, and continue the hose to the intercooler piping (make one hole there near to t.body, after the B.O.V. holes)

Please top up some more if my explanation is not clear..hehe.:driver:

errr...2different answer....

i guess both way boost still can be adjusted rite???


Mrnazmi

500 RPM
Senior Member

Mrnazmi

500 RPM
Senior Member
Jan 17, 2005
510
29
3,028
Drag City
Visit site
Yes ^pomen_GTR^, both way can be adjust, the main function of fish bone is to have some leaking so that we can increase the boost pressure..:driver:

More boost, more fast!
Over boost, keter terbabas! Hehehehe...:burnout:


^pomen_GTR^

7,000 RPM
Senior Member

^pomen_GTR^

7,000 RPM
Senior Member
May 13, 2010
7,509
1,690
1,713
The Mines
haha...ok..noted that....


speed2horizon

2,000 RPM
Senior Member

speed2horizon

2,000 RPM
Senior Member
Jun 4, 2006
2,798
334
1,683
haha...ok..noted that....

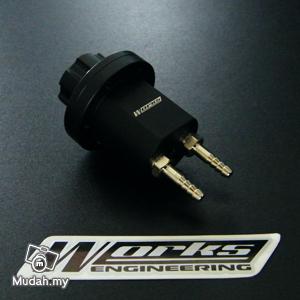

Works Manual Boost Controller ok ka if to play higher boost (up to 1.5 bar)?
Currently using fish bone (tulang ikan), not really accurate, still searching for another manual boost controller that cheaper...:driver:

p/s: If got budget wanna buy Greddy Profec-B II, huhu. But for now manual boost controller is the best option. (no money no higher boosting..:bawling:)
Sure... Provided u are using wastegate. Instead of installing the boost controller at the bottom port, U can T it from the boost source(IC Piping) to BOTH top and bottom port of the wastegate.

Have the boost controller to installed on the top port instead. by doing this, instead of bleeding the compressed air out to cheat the wastegate, u are acting it the totally opposite way. U will allow the spring assisted with compressed air to push the wastegate down to achieve more boost to counter the spring rate + altered compressed air. By doing this, u can achieve more stable boost.

BUT BARE IN MIND!!! BY DOING THIS, THE BOOST CONTROL ALSO WORKS OPPOSITE WAY. OPEN ALL THE VALVES FULLY IS REDUCE BOOST. CLOSING ALL THE VALVE IS MAXIMUM BOOST.... PLS BE CAREFUL ON THIS!!!



there is a hose from the exhaust manifold connected to the actuator, T-bridge it, using the 3 valve tulang ikan, keep the valve open by 1.5, and the 3rd one closed. this will give about 0.8 bar boost to ur stock turbo
This is not entirely true... Even if u are buying Turbosmart boost controller, the same ammount of turns will react differently on different engine/turbo.

Lebih lebih lagi, Tulang IKAN...

BTW, where is the hose from exhaust maifold comes from..? It's the hose from the IC piping or compressor outlet that connects to the actuator.

errr...2different answer....

i guess both way boost still can be adjusted rite???

From wastegate / actuator got one hole there, put the vacuum hose there and join the tulang ikan in the middle of the vacuum hose, and continue the hose to the intercooler piping (make one hole there near to t.body, after the B.O.V. holes)

Please top up some more if my explanation is not clear..hehe.:driver:
Where got different answer... =.=
SAME MA.... Sandwich the BC within the IC piping and turbo.


Newbienissan

Banned

Newbienissan

Banned
Jul 19, 2010
279
17
518
earth

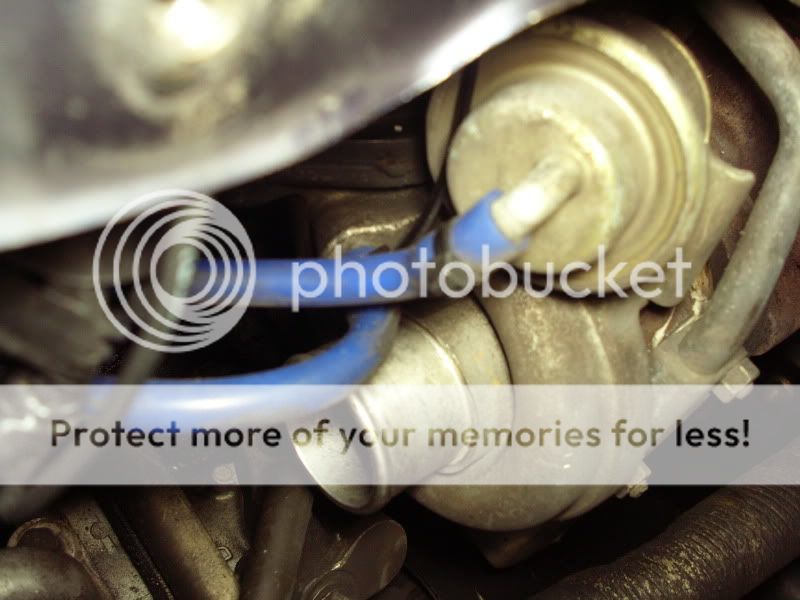

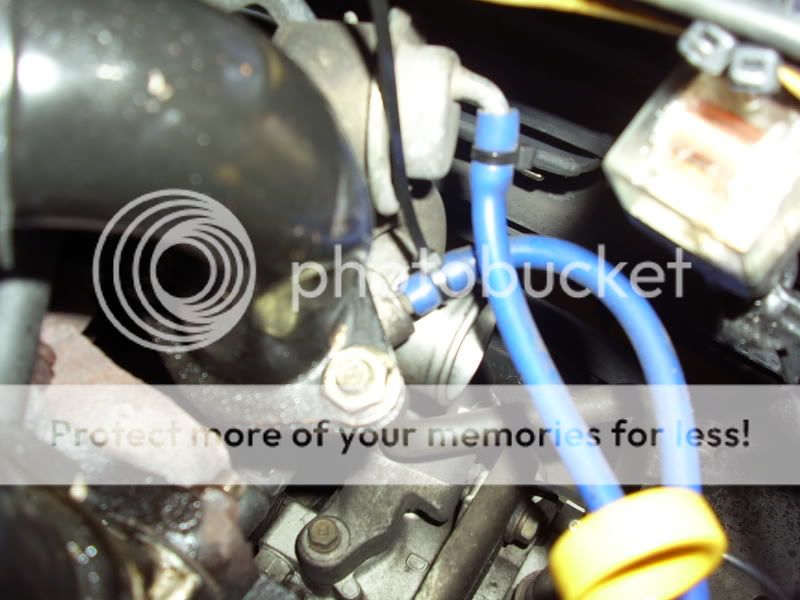

wait ar, i think i go take photo of my trusty L2 engine bay first....hehe

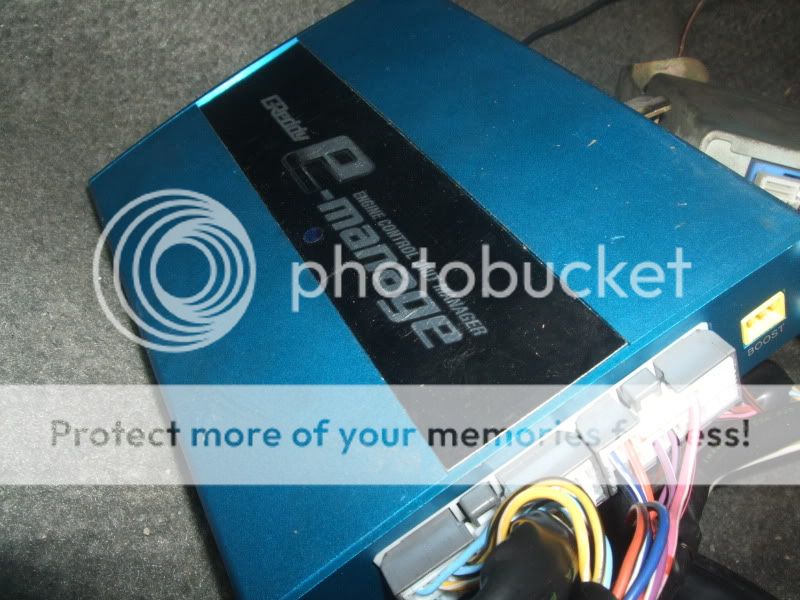

---------- Post added at 11:10 AM ---------- 6 hour anti-bump limit - Previous post was at 10:37 AM ----------









wasteg4te

Known Member
Senior Member

wasteg4te

Known Member
Senior Member
Sep 22, 2005
154
9
1,518
jb
regarding the work boost controller...
how much ar?
and
what the posible (Common) problem will facing when used manual bost controller?
