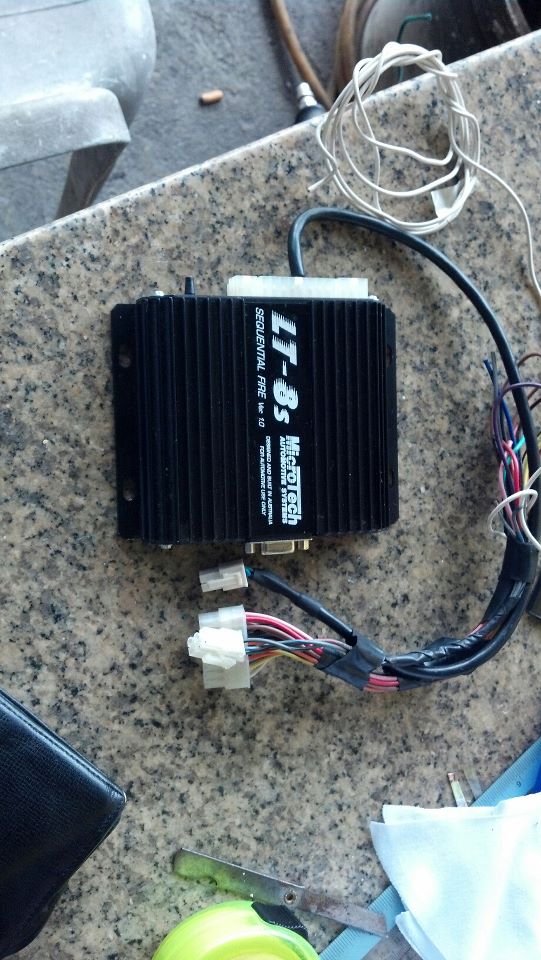

I have a unit of Microtech LT-8S to let go, brought back from australia and confirm in running conditions,Previously from rx7 FC3S....
Kit Contents:-
ECU
Flying Lead Wiring Loom (labeled)
General:-
Weight 500gm
Extruded Aluminum case
32 Bit Motorola Processor
Surface Mount technology board
Supports up to 12cyl and 4 rotor engines
Max readable RPM 15950
Max readable boost with standard map sensor :- 25psi (40psi avail as an option)
Fuel Delivery:-
4 Injector Drivers capable of 4 amp peak hold.
True sequential operation on 4 cylinder and rotary applications
Run up to 4 high impedance injectors per driver
Tunable in MAP or TPS mode or combination of both.
Main Matrix table has 16x16 load sites (upgradeable to 32x32)
RPM tuning range currently every 500rpm to 9000rpm (upgradeable to user definable position and number of sites)
Overall Mixture trim +-99%
[
Kit Contents:-
ECU
Flying Lead Wiring Loom (labeled)
General:-
Weight 500gm
Extruded Aluminum case
32 Bit Motorola Processor
Surface Mount technology board
Supports up to 12cyl and 4 rotor engines
Max readable RPM 15950
Max readable boost with standard map sensor :- 25psi (40psi avail as an option)
Fuel Delivery:-
4 Injector Drivers capable of 4 amp peak hold.
True sequential operation on 4 cylinder and rotary applications
Run up to 4 high impedance injectors per driver
Tunable in MAP or TPS mode or combination of both.
Main Matrix table has 16x16 load sites (upgradeable to 32x32)
RPM tuning range currently every 500rpm to 9000rpm (upgradeable to user definable position and number of sites)
Overall Mixture trim +-99%
[
