EASYCAR E602AS + Esay Door Lock

DBL-Vie Auto

Known Member
Senior Member
Joined
Aug 1, 2009
Messages
483
Points
1,516
Location
Kuala Lumpur

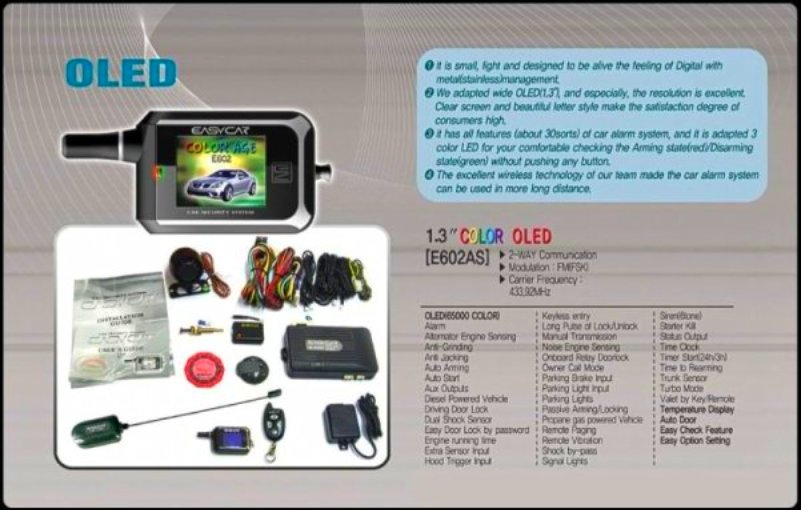

1.3" COLOR OLED
It is small, light and designed to be alive the feeling of Digital with metal (Stainless) management.We adapted wide OLED (1.3"), and especially, the resolution is excellent.Clear screen and beautiful letter style make satisfaction degree of consumers high. It has all features about 30 SORTS of car alarm system, and it is adapted 3 color LED for your comfortable checking on the Arming state RED / Disarming state GREEN without pushing any button. The excellent wireless technology of our team made the car alarm system can be used in more long distance.


1.3" COLOR OLED
[E602AS]
2-Way Communication
Modulation : FM(FSK)
Carrier Frequency : 433.92MHz

  • OLED (65000 COLOR)
  • Alarm
  • Alternator Engine Sensing
  • Anti-Grinding
  • Anti-Jacking
  • Auto-Arming
  • Auto Start
  • Aux Outputs
  • Diesel Powered Vehicle
  • Driving Door Lock
  • Dual Shock Sensor
  • Easy Door Lock By password
  • Engine Running Time
  • Extra Sensor Input
  • Hood Trigger Input
  • Keyless Entry
  • Long Pulse Of Lock/Unlock
  • Manual Transmission
  • Noise Engine Sensing
  • Onboard Relay Door Lock
  • Owner Call Mode
  • Parking Brake Input
  • Parking Lights Input
  • Parking Lights
  • Passive Arming/Locking
  • Propane Gas Powered Vehicle
  • Remote Paging
  • Remote Vibration
  • Shock By-Pass
  • Signal Lights
  • Siren (6 tones)
  • Starter Kill
  • Status Output
  • Time Clock
  • Timer Start (24H/3H)
  • Time To Rearming
  • Trunk Sensor
  • Turbo Mode
  • Valet By Key/Remote
  • Temperature Display
  • Auto Door
  • Easy Check Feature
  • Easy Option Setting
Package list
  • 1x OLED LCD 2way remote
  • 1x Siren
  • 1x A5100 Antenna module
  • 1x M5000 Main control
  • 1x Approaching sensor
  • 1x Dual shock sensor
  • 1x Easy door lock
  • 1x Knock sensor
  • 1x LED Ass'y
  • 1x Tempearture sensor
  • 1x Leather case
  • 1x Wire hardness kit
  • 1x Hood switch
  • 1x User guide
  • 1x Installation guide
  • 1x Car window warning sticker
  • 1x Full colored gift box
  • 1x 1 way remote
Auto Start
Press button ll for 2 seconds, [start] appears, then remote chirps and parking light flash once each. If it fails, the system tries auto start maximum 3 times automatically.
The engine running time will run 15 minutes basically. You can change it to 25 minutes by optional setting. You can press button ll for 2 seconds to turn it off.


Trunk Open
Press button lll for 2 seconds to unlock the doors and open thr trunk with twice chirps and parking lights flashes.

Query Function
Query function allows you to check the status of your car by pressing button lV for 0.5 second. The icon and the chirp sounds show you the status. If you are within trnsmitting distance to receive the signal for shock, theft and easy call, you will receive the responses like chart.
*If the transmitting is impossible, ex~status of your vehicle will be displayed on OLED.

Panic Mode
In this case, your vehicle will lock the doors if unlocked already and the siren will activate and the parking lights will flash for 1 and half minute.
This function is used for warning under emergency when you feel feel your personal danger and informing your situation.


Real Time Remote Paging Function
Whenever one of Owner call, Theft report and Shock sensing report is triggered, it is reported to the remote with beeps and flashing icon on LCD.
In particular, Theft is reported with continuous beeps in consideration that you didn't hear the beeps. In this case, vibration is set, blue LED on remote blinks rapidly.


Shock Sensing Report
This function reports to your remote any shocks at your vehicle in arming mode. When your vehicle is shocked, your remote sounds warning continuously.

Theft Report
Our system recognizes it as Theft and avtivates Alarm function when doors open by force or with the key in arming mode.

Auxiliary Output (optional)
This mode is used to control (on/off) one of the various functions such as Convertible car, Sunroof, Car Audio, Window Remote Power etc.

Knock Sensor (option setting)
If you knock just twice during Arming remote bells. This function can not be used Key On and Ignition On. And also, thisplays as LED role for Arming display.

Owner Call
This mode allows people to call u by knocking the knock sensor 2 times on the front window of the vehicle. You can recognize this call through the icon on the remote TFT LCD.

Valet Function
Valet mode is useful when loaning your vehicle or having it served (example: car wash, parking lot and auto repair shop).

Passive Mode
The door are locked automatically in 30 seconds after all the door are closed and engine is off.

Driving Door Lock (ignition lock)
This function enables your vehicle to automatically lock the door in 30 seconds after starting.
On the contrary, the vehicle automatically unlock the doors when you finish the starting.


Shock Sensing
*Example* It is useful when you or your baby sleep in the vehicle, or your pet stays in the vehicle.

Timer Start
The vehicle will automatically start at reserved time every 24(3) hours.

Turbo
Under this mode, engine keeps running for 30 seconds(it can be changed to 2 minutes by optional setting) after key has been taken from ignition.
This mode is useful for turbo vehicle that need to be cooled down after long drive.

[/COLOR]
OLED FEATURES


1. Cause for failure or arming and auto start can be easily checked [CHECK FEATURE]

2. All the functions can be easily and comfortably selected with color OLED display [FUNCTION SETTING]

3. Door can be locked and unlocked automatically when approaching [AUTOMATIC DOOR]

4. You can change Turbo and Start time Etc easily [OPTION SETTING]

EASY DOOR LOCK



Remarkable New Function Installed!!!
Just knock 4 Digits pre-installed password, you can arm(Door Close)/disarm (Door Open) the car security system without remote controller. Sensor part built-in 10 LEDs can display various status depend on its function.



Feel free to visit our website www.dbl-vie.yolasite.com and do not hesitate to email us [email protected] if you have any further enquiries.


Call or SMS +6018-9508211 +6018-9519992

YouTube - Smar Door YouTube - Auto Side Mirror Foldoing YouTube - iran TV ads

YouTube - Easy Door Lock

YouTube - Smart Door
