[After12] Water Methanol Injection System.LIFE WARRANTY.

Status
Not open for further replies.
Engine and Performance

[After12] Water Methanol Injection System.LIFE WARRANTY.

MAX_TorQue

7,000 RPM
Senior Member
Joined
Jan 18, 2006
Messages
7,962
Points
5,138
Welcome to AfterTwelve E-Garage!!!
We do shipping internationally / COD / Credit card accepted.
We provide installation as well.
Some item's price quoted below including installation or painting.Please take note.
Any kit that you are interested but not listed here, please contact us.


For order/enquiry, please contact JACK 012.312.7113.

Please Click to visit AfterTwelve E-Garage

We are the authorized Dealer for Snow Performance Boost Cooler.

The Boost Cooler® is Snow Performance's latest generation water/methanol injection system.
The primary function of water/methanol injection is to provide "chemical intercooling".

In gasoline engines, as with any intercooler, this suppresses detonation so more power producing boost and timing can be utilized.
Water, with its high latent heat of vaporization cools the intake charge and combustion.
Methanol cools the charge and combustion but also acts like an extremely high octane fuel (some researchers claim as high as 120 octane) as well as adding more oxygen to combustion.

LIFETIME WARRANTY!!!


More power over a wider range and better drivability is the result.
20% increases in Horsepower typical.

Stage 1 RM1699 Turbo / NA
The gasoline Stage 1 Boost Cooler kit is available for forced induction application that are either fuel injected or carbureted, or naturally aspirated applications that don't utilize a MAF sensor. Operation is very simple.
For N/A,
the system starts injecting when the vacuum switch reaches the user-adjustable point and it injects a fixed amount of fluid through the nozzle until the switch opens again. This makes it a good choice for naturally aspirated cars looking for an octane enhancement and cooler intake charge. Activation can also be set up through any other user-chosen switch, such as a full throttle switch, etc.
For Turbo,
Operation is very simple: the system starts injecting when the boost switch reaches the user-adjustable point and it injects a fixed amount of fluid through the nozzle until the switch opens again. This makes it a good choice for low to medium boost setups looking for an octane enhancement and cooler intake charge. Activation can also be set up through any other user-chosen switch, such as a full throttle switch, etc

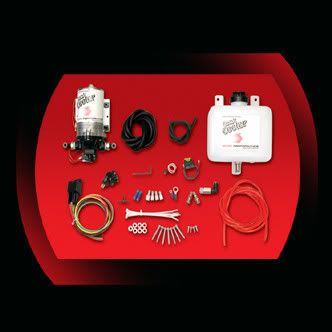

Stage 1 Kit includes:

• 150+ PSI High Volume Pump

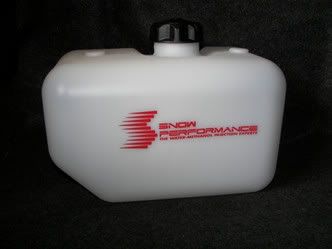

• 3 Quart Reservoir
• 2 Nozzles To Cover a Wide Range of Horsepower
• All Required Hardware Needed For Installation



Stage 2 RM2199
For Turbo,

This kit uses manifold boost pressure to determine when and how much fluid to inject.
Proportionally injecting according to boost pressure gives the most accurate delivery of water-methanol and allows the most cooling and performance improvement over the widest range. More power and driveability is the result.
It can be used on any forced induction engine: carbureted, fuel injected, turbocharged, positive displacement or centrifugal blowers.
The most suitable are the centrifugal supercharged and turbocharged engines, as they build boost is a more progressive manner concerning water-methanol injection. The positive displacement blower engines will work, but it might take more work to dial in the delivery.
For N/A,
This kit uses a progressive controller that proportionally injects more or less according to manifold vacuum. Start and full points are adjustable for engagement and delivery curve, to match what the engine requires. High compression modified engines can gain performance through cooler intake charges and the large increase in octane and detonation suppression. It can also be geared towards fuel economy and using lower grades of gasoline.


Stage 2 Kit includes:

• 150+ PSI High Volume Pump
• 3 Quart Reservoir
• Digital Variable Controller
• 2 Nozzles To Cover a Wide Range of Horsepower
• All Required Hardware Needed For Installation


NOW with LIFE TIME WARRANTY!!!

Boost juice RM38/Bottle



Installation Charges: From RM100

Please call for viewing and latest promotion.






Ready Stock


Attachments

  • japanbid.JPG
    48.3 KB · Views: 1,690
Last edited:
Hi bro, mind telling how long can a boost juice of RM 38 last? Haw many Kms?

so bro.... is it some kind of N.O.s but use water and methanol??? or issit same like NGV??? explain more about how the thingy work.....

Hi bro, mind telling how long can a boost juice of RM 38 last? Haw many Kms?

We cant tell u how many KM will done.
Depends on ur setting.
Its comes with On/Off switch as well.

Means u can ON it when u feel like using it.And for stage 2, it comes with Controller which allow u to control the volume of juice injected.

Some High boost modded engine may consump more thn a normal tuned engine.

But if compare with NOS, it save alot on juice.

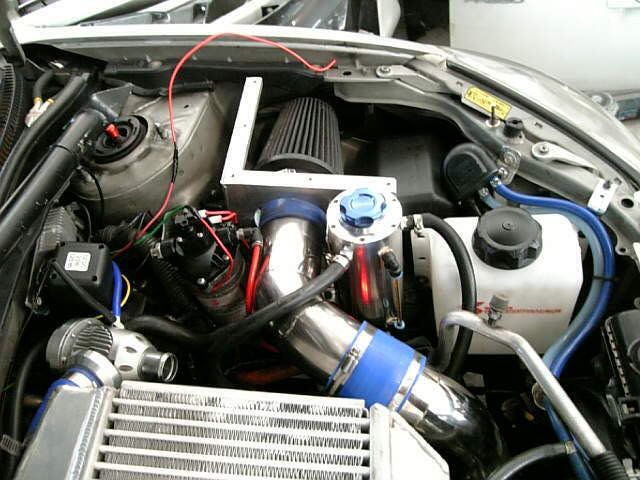

Here is a customer car with methanol installed.Very good feedback and responsive!!!


GREEN:3L Reservoir
YELLOW: LIFETIME warranty pump.





We provide special device to tune the methanol volume accoriding to the A/F ratio to get peak performance.

Suitable for NA, Turbo and Diesel.

Feel free to visit for a demo!!!

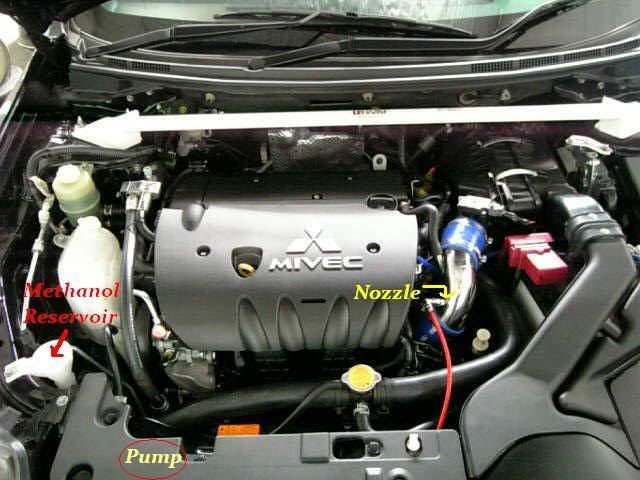

Lancer GT 2.0 with Water Methanol Injection System.



Last edited:
anyone that have installed this system willing to how is the system works? either better or not....

anyone that have installed this system willing to how is the system works? either better or not....

We installed for 2 Lancer GT 2.0, Caldina Gt4,Subaru Sti V8/9, and Cefiro With RB25, etc...

If u would like to knw about the respond / HP gain, u may visit us...

Hi,
Do you just sell the vacuum switch for NA?

Thanks
