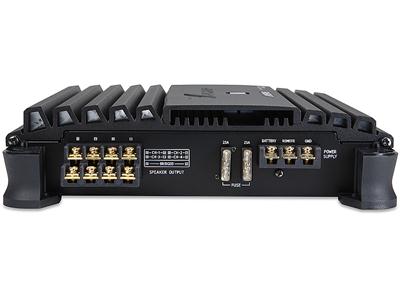

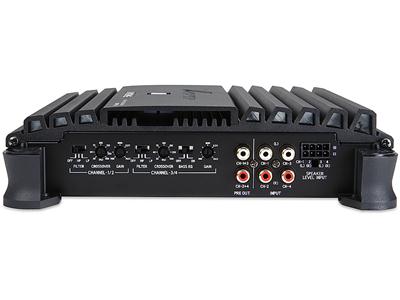

Alpine MRP-F300 V-Power Series 4-channel car amplifier

[ycsiew123]

Features and Specification
SPECIFICATIONS

CEA-2006 Power Ratings

CEA-2006 Power Rating: (4 I? @14.4V Ƈ% THD+N, S/N: 80dBA, ref:1W into 4 I?) 50W x 4

RMS Power Ratings

Per channel into 4 Ohms: (@ 14.4V Ƈ%THD+N, 20Hz - 20kHz) 50W x 4
Per channel into 2 Ohms: (@ 14.4V Ƈ%THD+N, 20Hz - 20kHz) 75W x 4
Bridged 4 Ohms: (@ 14.4V Ƈ%THD+N, 20Hz - 20kHz) 150W x 2

Sound Tuning

Crossover: 50Hz-400Hz, -12dB/oct. (Low-Pass/High-Pass)
EQ (Equalizer): Bass EQ (Fixed Frequency): 50Hz +12dB
Subsonic Filter: 15Hz (Fixed), -18dB/oct.

Dimensions

Foot Print (WxHxD) mm: 270mm x 60mm x 242mm
Foot Print (WxHxD) in: 10-15/16'' x 2-23/64'' x 9-27/32''
Heat Sink (WxHxD) mm: 210mm x 60mm x 242mm
Heat Sink (WxHxD) in: 8-17/64'' x 2-23/64'' x 9-33/64''

General

Power Requirements: 14.4V DC (11V to 16V)
Input Sensitivity: 0.2 - 4.0V
Frequency Response: 20 -20kHz (0, -1dB)
Speaker Impedance: 4 or 2 I?
Signal to Noise: 100dBA

Location kl and pj
price Offer me :)



[Tekashe]

pm me...
