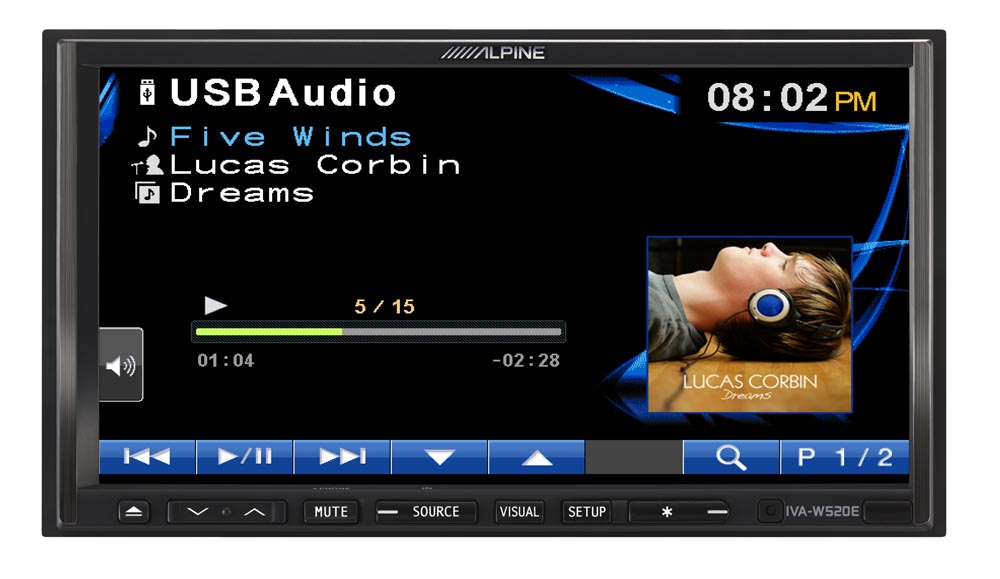

The IVA-W502E is Alpine’s most advanced mobile media station ever. Extremely versatile – it’s ready to playback the latest media formats including video and audio content direct from your iPod. Even more impressive, the brilliant 7” high resolution WVGA display delivers colourful, vibrant and true-to-life images. The enhanced graphic user interface provides selectable viewing modes, as well as iPod album artwork.

The included* Bluetooth module gives you hands-free operation of many Bluetooth enabled phones. To create the ultimate AV experience, connect the powerful PXA-H100 processor to realize the accuracy and stunning clarity of IMPRINT sound.

Product Information
  • Dual Display ModesOur all new user interface provides twoconvenient operating modes, giving you achoice of what you want to see and how much information you want displayed. The Basic modeshows you current song info and playing time,while the Pro mode also shows the upcoming five songs, allowing you to easily jump ahead
  • Bright, Brilliant DisplayThe WVGA display gives you bright, high-resolution, high-quality video display, and even features Visual Enhancement for greater clarity in excessively dark or light movie scenes.
  • Bring your iPod along for the ride and enjoy your portablemusic collection on the road with the full clarity and powerof your audio system. (KCU-450iV USB cable required)
  • With the optional PXA-H100 IMPRINTSound Processor, you can automatically fix in-car acoustical problems, or use the manual tuning controls to preciselycorrect and enhance the sound yourself. The result? Authentic music reproduction virtually identical to the original.
  • 7" WVGA Touch Screen display
  • 50W x 4 High Power Amp
  • DVD+-R/+-RW/MP3/AAC/WMA/DivX Playback
  • USB Connection for iPod
  • iPod Video Content Play back
  • 3 Preouts / 2 Preins for PXA-H100
  • IMPRINT Ready (Requires PXA-H100)
  • Bluetooth Ready with audio streaming
  • 24 Bit DAC
  • Visual Enhancement System
  • Remote Control Ready
  • 1 AUX input/ 1 AUX output
  • DVD-Audio 2ch down-mix


  • DIN Size: 2
  • Chassis Size (W x H x D) mm: 178mm x 100mm x 160.5mm
Monitor Section

  • Screen Size: 7.0"
  • LCD Type: Transparent type TN LCD
  • Operation System: TFT active matrix
  • Number of Picture Elements: 1,152,000 pcs. (800 × 3 × 480)
  • Effective Number of Picture Elements: 99% or more
  • Illumination System: LED

  • Power Requirement: 14.4 V DC(11-16 V allowable)
  • Operating temperature: +32°F to +113°F(0°C to + 45°C)
  • Maximum Power Output: 50 W × 4 Output Voltage: 2,000 mV/10k ohms
  • Bass: ±14 dB at 60 Hz
  • Treble: ±14 dB at 10 kHz
  • Weight: 2.7 kg (5 lbs. 15 oz)
  • Audio output level Preout (Front, Rear): 2V/10k ohms (max.) Preout (Subwoofer): 2V/10k ohms (max.)
  • AUX OUT: 1.2V/10k ohms
  • Ai-NET: 850 mV
