Item(s):JVC KD-AV7005 7" TFT Detachable Auto Indash Monitor DVD MP3 CD Car Player

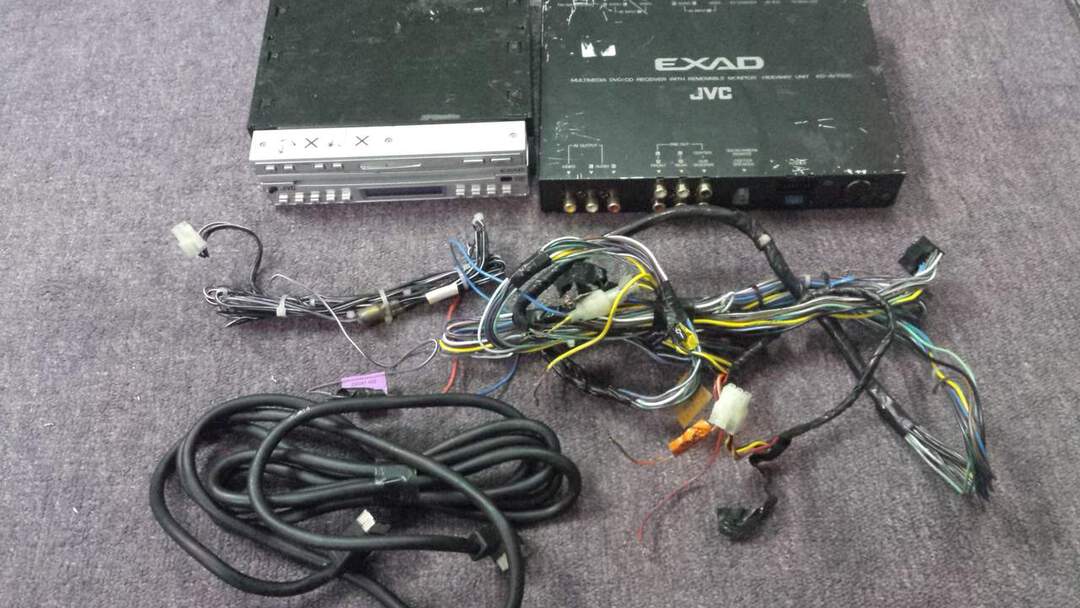

Package includes:Main unit, Hideaway Unit, Power cord for main unit, 1pc x AV Bus Cable 2.5m (connect between main unit and hideaway unit), center speaker/ Rear Camera Cord, Remote controller
Price:rm800
Warranty:3 day pw
Dealing method:cod prefer
Location of seller:klang
Contact method/details:pm or here
Age of item:lost track
---
Item(s) conditions:8.5/10 (lens just replace new one)

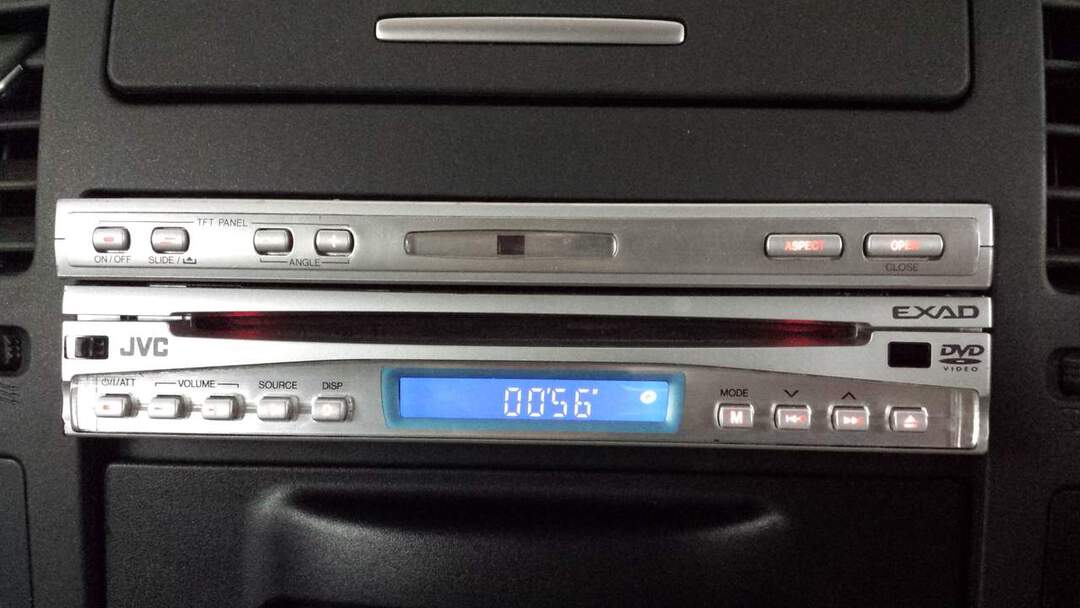

Picture:
Reason for sale:not using it anymore
Summary of product
The large 7-inch in-dash monitor can be detached for mounting on the headrest. The unit offers audio-visual entertainment from a wide range of sources -- including DVD, CD & MP3) -- with easy, touch-panel operation. A MOS-FET power amp, together with 96kHz/24-bit DAC ensures magnificent sound quality. The units also provide Dual-Zone Entertainment.
JVC KD-AV7005 7 TFT TOUCHSCREEN INDASH MONITOR CAR DVD PLAYER FEATURES:
Power Output: Music Power Front/Rear: 50Wx4, center: 35Wx1
TFT Active Matrix LCD with Wide Viewing Angle
336,960 Pixel Resolution
5.1ch Dolby Digital/DTS Decoder Built in
Detachable Fully- motorized 7" In-Dash Widescreen Monitor and Partially Detachable Control Panel.
Touch Panel wiht GUI
Motorized Tilt Fore & Aft Adjustment
Changer Control DVD Receiver
MOS-FET Power Amp
96kHz/24-Bit Audio D/A Converter
27MHz/10-Bit Video D/A Converter
MP3/CD/CD-R/CD-RW/DVD-R/DVD-RW Compatible
DSP with 5 Ambience Modes
5-Band iEQ
Multi-Function Wireless Remote Control
Dolby Pro Logic II
Gold Plated Line Output Terminals (2 pairs)
Gold Plated 5.1ch Pre-Output Terminals (Front/Rear/Center/Subwoofer)
Gold Plated A/V Input Terminals (2 pairs)
Gold Plated A/V Output Terminals
SIRIUS Compatible
HS-IIIi Tuner
Dual Zone Capability
Optional TV-Tuner (KV-C1000)
Optional Rear Seat Mounting Cradle (KV-CR100)
Optional Center Channel Speaker (CS-CN100)
JVC KD-AV7005 7 TFT TOUCHSCREEN INDASH MONITOR CAR DVD PLAYER SPECIFICATION:
Main Unit
Audio Amplifier Section:
Maximum Power Output: Front/Rear: 50W, Center:35W
Continuous Power Output (RMS):
Front: 19W per channel into 4 Ohm, 40 Hz to 20KHz at no more than 0.8% total harmonic distortion
Rear: 19W per channel into 4 Ohm, 40 Hz to 20KHz at no more than 0.8% total harmonic distortion
Center: 15W into 4 Ohm, 40 Hz to 20KHz at no more than 0.8% total harmonic distortion
Load Impedance: 4 Ohm (4 to 8 Ohm allowance)
Equalizer Control Range:
Frequencies: 100Hz, 300Hz, 1kHz, 3kHz, 10kHz
Level: +- 10dB
Frequency Responce: 40Hz to 20kHz
Signal to Noise Ratio: 70dB
Tuner Section:
Frequency Range:
FM: 87.5 MHz to 108.0 MHz
AM: 531 kHz to 1602 kHz
FM Tuner:
Usable Sensitivity: 11.3 dBf (1.0uV/75 Ohm)
50 dB Quieting Sensitivity: 16.3 dBf (1.8uV/75 Ohm)
Alternate Channel Selectivity (400 kHz): 65 dB
Frequency Respond: 40 Hz to 15kHz
Stereo Separation: 35 dB
Capture Ratio: 1.5 dB
AM Tuner:
Sensitivity: 20 uV
Selectivity: 35 dB
Removable Monitor:
Screen Size: 7 inch wide liquid crystal display
Number of Pixel: 336 960 pixels (480 vertical x 234 horizontal x 3)
Drive Method: TFT Active & Matrix format
Color System: PAL/NTSC
Aspect Ratio: 16:9 (wide)
Allowable Storage Temperature: -0'C to +60'C
Allowable Operating Temperature: +0'C to +40'C
Dimension (W x H x D): 170mm x 141mm x 15mm
Mass: 475g
General:
Power Requirement: Operating Voltage: DC 14.4V (11V to 16V allowance)
Grounding System: Negative Ground
Allowable Operating Temperature: 0'C to +40'C
Dimension (W x H x D): Installation Size:
With Sleeve-mounting plate Type B: 182mm x 52mm x 165mm
With Sleeve-mounting plate Type A : 182mm x 52mm x 160mm
Panel Size: 188mm x 58mm x 14mm
Mass: 2.25 kg (including monitor)
Hideaway Unit
AV input 1/2:
Audio: 0.5Vrms (Left/Right)
Video (composite): 1 Vp-p/75 Ohm
Output Terminals (Level /Impedance)
AV Output:
Audio: 2.0V/ 20 kOhm load (full scale)
Video (composite): 1 Vp-p/75 Ohm
Pre Out: Audio: 2.0V/ 20 kOhm load (full scale)
Other Terminals:
System integration (To Main Unit)
FM/AM Antenna (FM/AM Antenna)
AV Bus (AV Bus)
CD Changer (To Changer)
Rear view camera/ Center Speaker
Power Cord (Power)
Dimension (W x H x D): 230mm x 35mm x 181mm
Mass: 1.3kg
Package includes:Main unit, Hideaway Unit, Power cord for main unit, 1pc x AV Bus Cable 2.5m (connect between main unit and hideaway unit), center speaker/ Rear Camera Cord, Remote controller
Price:rm800
Warranty:3 day pw
Dealing method:cod prefer
Location of seller:klang
Contact method/details:pm or here
Age of item:lost track
---
Item(s) conditions:8.5/10 (lens just replace new one)
Picture:
Reason for sale:not using it anymore
Summary of product
The large 7-inch in-dash monitor can be detached for mounting on the headrest. The unit offers audio-visual entertainment from a wide range of sources -- including DVD, CD & MP3) -- with easy, touch-panel operation. A MOS-FET power amp, together with 96kHz/24-bit DAC ensures magnificent sound quality. The units also provide Dual-Zone Entertainment.
JVC KD-AV7005 7 TFT TOUCHSCREEN INDASH MONITOR CAR DVD PLAYER FEATURES:
Power Output: Music Power Front/Rear: 50Wx4, center: 35Wx1
TFT Active Matrix LCD with Wide Viewing Angle
336,960 Pixel Resolution
5.1ch Dolby Digital/DTS Decoder Built in
Detachable Fully- motorized 7" In-Dash Widescreen Monitor and Partially Detachable Control Panel.
Touch Panel wiht GUI
Motorized Tilt Fore & Aft Adjustment
Changer Control DVD Receiver
MOS-FET Power Amp
96kHz/24-Bit Audio D/A Converter
27MHz/10-Bit Video D/A Converter
MP3/CD/CD-R/CD-RW/DVD-R/DVD-RW Compatible
DSP with 5 Ambience Modes
5-Band iEQ
Multi-Function Wireless Remote Control
Dolby Pro Logic II
Gold Plated Line Output Terminals (2 pairs)
Gold Plated 5.1ch Pre-Output Terminals (Front/Rear/Center/Subwoofer)
Gold Plated A/V Input Terminals (2 pairs)
Gold Plated A/V Output Terminals
SIRIUS Compatible
HS-IIIi Tuner
Dual Zone Capability
Optional TV-Tuner (KV-C1000)
Optional Rear Seat Mounting Cradle (KV-CR100)
Optional Center Channel Speaker (CS-CN100)
JVC KD-AV7005 7 TFT TOUCHSCREEN INDASH MONITOR CAR DVD PLAYER SPECIFICATION:
Main Unit
Audio Amplifier Section:
Maximum Power Output: Front/Rear: 50W, Center:35W
Continuous Power Output (RMS):
Front: 19W per channel into 4 Ohm, 40 Hz to 20KHz at no more than 0.8% total harmonic distortion
Rear: 19W per channel into 4 Ohm, 40 Hz to 20KHz at no more than 0.8% total harmonic distortion
Center: 15W into 4 Ohm, 40 Hz to 20KHz at no more than 0.8% total harmonic distortion
Load Impedance: 4 Ohm (4 to 8 Ohm allowance)
Equalizer Control Range:
Frequencies: 100Hz, 300Hz, 1kHz, 3kHz, 10kHz
Level: +- 10dB
Frequency Responce: 40Hz to 20kHz
Signal to Noise Ratio: 70dB
Tuner Section:
Frequency Range:
FM: 87.5 MHz to 108.0 MHz
AM: 531 kHz to 1602 kHz
FM Tuner:
Usable Sensitivity: 11.3 dBf (1.0uV/75 Ohm)
50 dB Quieting Sensitivity: 16.3 dBf (1.8uV/75 Ohm)
Alternate Channel Selectivity (400 kHz): 65 dB
Frequency Respond: 40 Hz to 15kHz
Stereo Separation: 35 dB
Capture Ratio: 1.5 dB
AM Tuner:
Sensitivity: 20 uV
Selectivity: 35 dB
Removable Monitor:
Screen Size: 7 inch wide liquid crystal display
Number of Pixel: 336 960 pixels (480 vertical x 234 horizontal x 3)
Drive Method: TFT Active & Matrix format
Color System: PAL/NTSC
Aspect Ratio: 16:9 (wide)
Allowable Storage Temperature: -0'C to +60'C
Allowable Operating Temperature: +0'C to +40'C
Dimension (W x H x D): 170mm x 141mm x 15mm
Mass: 475g
General:
Power Requirement: Operating Voltage: DC 14.4V (11V to 16V allowance)
Grounding System: Negative Ground
Allowable Operating Temperature: 0'C to +40'C
Dimension (W x H x D): Installation Size:
With Sleeve-mounting plate Type B: 182mm x 52mm x 165mm
With Sleeve-mounting plate Type A : 182mm x 52mm x 160mm
Panel Size: 188mm x 58mm x 14mm
Mass: 2.25 kg (including monitor)
Hideaway Unit
AV input 1/2:
Audio: 0.5Vrms (Left/Right)
Video (composite): 1 Vp-p/75 Ohm
Output Terminals (Level /Impedance)
AV Output:
Audio: 2.0V/ 20 kOhm load (full scale)
Video (composite): 1 Vp-p/75 Ohm
Pre Out: Audio: 2.0V/ 20 kOhm load (full scale)
Other Terminals:
System integration (To Main Unit)
FM/AM Antenna (FM/AM Antenna)
AV Bus (AV Bus)
CD Changer (To Changer)
Rear view camera/ Center Speaker
Power Cord (Power)
Dimension (W x H x D): 230mm x 35mm x 181mm
Mass: 1.3kg
