Thailand's 999 Motorsports' latest 300bhp Supersport spaceframed racer

[Staff]

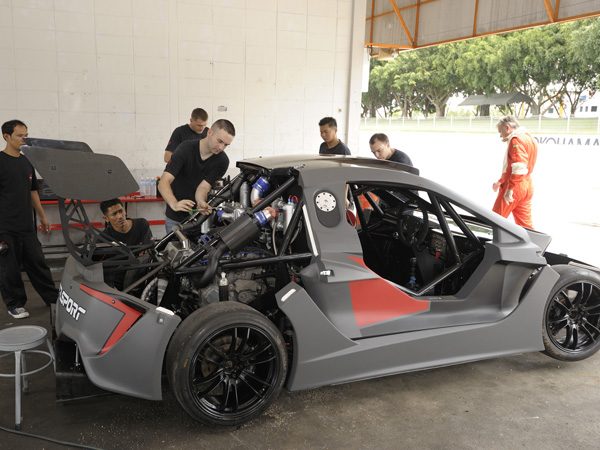

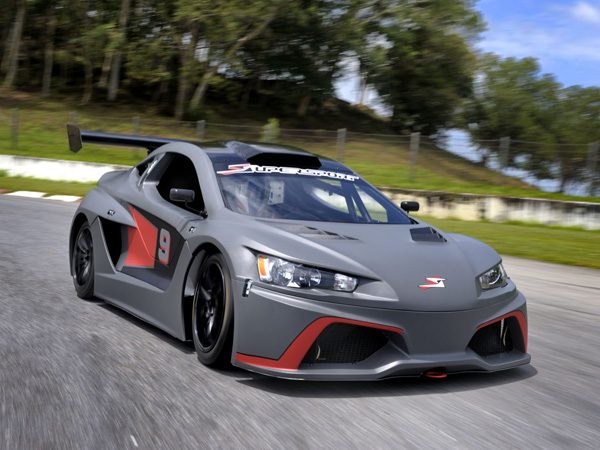

The Supersport, spearheaded by 999 Motorsports, Thailand, centers on a tubular framework. Designed to meet the requirements of race circuits; structurally, the vehicle consists of a fiberglass body and dashboard all wrapping a spaceframe chassis, are the leading features of its cabin.



The sleek Supersport devised for racing, derives its power from a Ford Ecotec 2.0L 4-cyl Turbo, capable of generating 300bhp and 258 lb-ft of torque. The engine is centered in the middle and transmits power to its hind wheels through a uniquely devised five speed sequential transmission.



Though nothing official was stated about its speed and performance, the lightly weighted racing vehicle is expected to deliver a speedy show. With only nine hundred and fifty kilos of weight, the sleek and slender racing car has a long way to go in the racing arena.



Technical Specs

Type​	Supersport Mid engine rear wheel drive​
Chassis​	Tube space frame (Steel 4130) Aluminum powder-coated panels​
Bodywork​	Fiberglass / Carbon Laminated windshield, headlights, tail lights, adjustable rear wing, rear diffuser​
Engine​	Ecotec 2.0L 4-cyl. Turbo Max. power: 300 hp at 5600 rpm (225 hp with endurance ECU) Max. torque: 350 N.m. Racecraft radiators and air water intercooler, stainless steel exhaust line and mufler​
Gearbox​	5-speed sequential Limited slip differential​

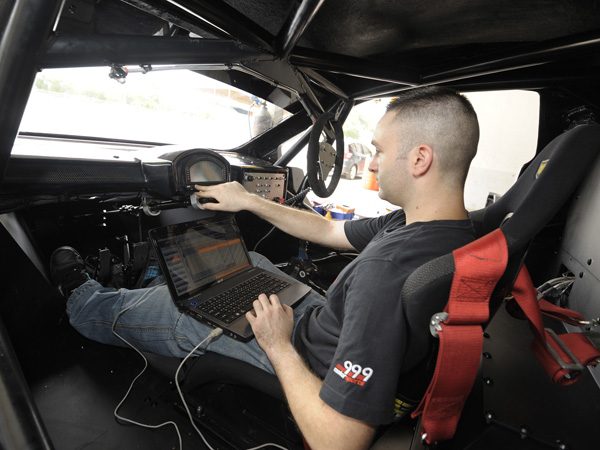

Gauge​	LCD dashboard, programmable multifunction display​
Front/Rear suspension​	Double wishbone, adjustable anti-roll bar​
Shock absorbers​	Rebound adjustable​
Calipers​	Front: 6 Pistons Rear: 4 pistons​
Brake discs​	Front: Ø 320 mm Rear: Ø 285 mm​
Wheels​	Front: aluminium monobloc 18x8" rims Rear: aluminium monobloc 18x9.5" rims​
Tires​	Front: 21/65-18 Rear: 24/65-18​
Wheel base​	2460 mm​
Front track​	1580 mm​
Rear track​	1540 mm​
Length​	4210 mm​
Width​	1850 mm​
Weight​	950 kg​
Fuel cell​	55 liters​
Safety​	Extinguisher, 6 points harness, collapsible steering column, crash box​

More info: http://www.999motorsports.com/



[skazareth]

i tot it was Evo



[Jakk]

ganas betul !

btw, front end got the shadow of Honda Prelude 4th gen



[cRazYee]

since this is space frame chassis
better of make it like xbow or ariel atom

the bodyweight is just excess weight, don't think it's aerodynamics either



[deanengson]

Lancer headlamps!



[semangka]

i see lancerGT/Inspira headlamp there....



[^pomen_GTR^]

at first i tot it was overly done ahbeng kitted putra



[khencana]

yes ... inspira.. opsss.. lancer headlamp....



[[H] [K] [S]]

Awesome weird looking spaceship... It's all good tho...



[TimLang]

1st impressions i tot it was Honda CRZ, then...see the head lamp Evo x....bumper looks like Ferrari enzo. Hmmm...



[biz-da-tech]

all jealous of thailand people ? XD



[Supra_Fanatics]

NIce car! Look a lot like a Supercar :top:



[MaRvyn]

Lancer EvoX headlamp... Mazda2 tail light... base car also might be Mazda2?



[umair lim]

thought it was evo X,but realized its not when its too short to be evo X



[bushidofang]

But it looks soooo good.



[Kowreck Corleone]

malaysia cannot lose. must make one. where is malaysias inventive spirit?



[cRazYee]

no need jealous!
i believe student level able to make a better one
just need money and time

those who been to formula student event should know this is no far ahead



[HKS-GT2835R]

alamak! not bad lar. over here got ca such car?

now it needs a month or two in the wind tunnel, get it to be more aero!

---------- Post added at 09:05 AM ---------- 6 hour anti-bump limit - Previous post was at 08:59 AM ----------

malaysia cannot lose. must make one. where is malaysias inventive spirit?

i sapot you on that statement aledi.



[jdm_jdm]

Awesome!



[drften]

if thai can we oso can - you got money you can make it.
