Redline Garage Brings You the New”GT SPEC REDLINE INTERCOOLER”
The new REDLINE GT spec intercooler kit has much less pressure drop than some other inefficient bar and plate design's and is 10 % lighter in weight! The ultimate performance is guaranteed as there is less restriction on the turbo compressor wheel which leads to a free'r flow on the exhaust turbine wheel. REDLINE GT spec effectively reduces the turbo lag as well as widens the power band and increases maximum power with less engine stress.

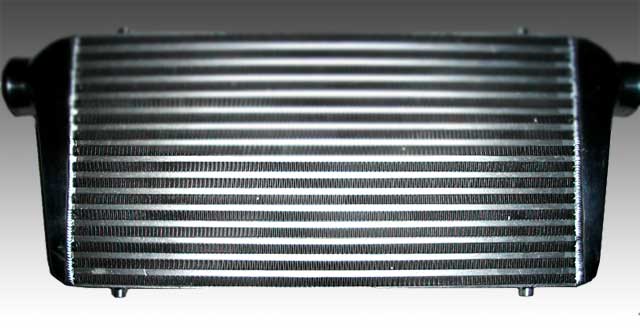

REDLINE INTERCOOLER
VR4 & EVO SIZE RM610NEG
VR4 Size: Core size 450*300*76, Awesome core to make a custom front mount kit, medium aluminium polished intercooler. it is a bar and plate type cooler with core size of 450x300x76 and 3" inlet/outlets. Overall length is 630x330x76mm
designed for huge air flow, with results showing at least 15hp gained

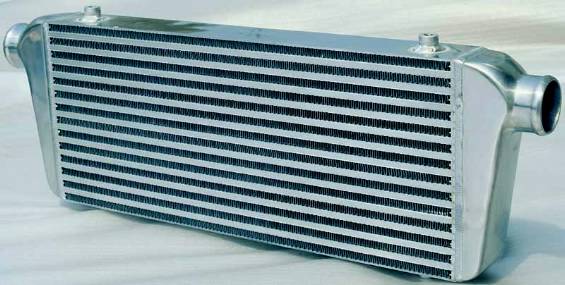

REDLINE INTERCOOLER[
MITZ,NISSAN,MAZDA ETC..GOOD FOR MANY TURBO APPLICATION RM730NEG
Evo, Nissan ETC:Core size 550*230*65 Overall Size 700*230*65, Bar and plate construction, Up to 600PS
Working Pressure 10-40psi, Compressed air flow rate: 572CFM/300HP 858CFM/800HP
Pressure Drop : 1.5-2.5 psi@35psi : 0.1-0.3psi@15psi, Hot Air Temp: 0-150C,
REDLINE INTERCOOLER
GTR SIZE RM800NEG
GTR Size : Core size 600*300*76, Polished aluminium, 770mm over all length,
3 inch (75mm) inlet and outlet, Compressed air flow rate of 750 cubic - feet/min
Good for up to 600HP (450KW), Low pressure drop 0.2psi at 15psi, Strong bar and plate design tested to over 80psi.
REDLINE INTERCOOLER
GTR SIZE RM700NEG
GTR Size : Core Size 600*283*70, Overall Size 1025*283*70.. Awesome core to make a custom front mount kit, Good for up to 800HP (450KW). Low pressure drop 0.2psi at 15psi. Strong bar and plate design tested to over 80psi. It has a very small pressure drop across the end tanksat 15 psi the outlet shows 14.8 psi with a temperature drop from 120 degrees to 28 degrees
ANd many other size available.....
ww.Redzoneconnection.com
[email protected]http://www.redzoconnection.com
CALL 012-2698554
The new REDLINE GT spec intercooler kit has much less pressure drop than some other inefficient bar and plate design's and is 10 % lighter in weight! The ultimate performance is guaranteed as there is less restriction on the turbo compressor wheel which leads to a free'r flow on the exhaust turbine wheel. REDLINE GT spec effectively reduces the turbo lag as well as widens the power band and increases maximum power with less engine stress.
REDLINE INTERCOOLER
VR4 & EVO SIZE RM610NEG
VR4 Size: Core size 450*300*76, Awesome core to make a custom front mount kit, medium aluminium polished intercooler. it is a bar and plate type cooler with core size of 450x300x76 and 3" inlet/outlets. Overall length is 630x330x76mm
designed for huge air flow, with results showing at least 15hp gained
REDLINE INTERCOOLER[
MITZ,NISSAN,MAZDA ETC..GOOD FOR MANY TURBO APPLICATION RM730NEG
Evo, Nissan ETC:Core size 550*230*65 Overall Size 700*230*65, Bar and plate construction, Up to 600PS
Working Pressure 10-40psi, Compressed air flow rate: 572CFM/300HP 858CFM/800HP
Pressure Drop : 1.5-2.5 psi@35psi : 0.1-0.3psi@15psi, Hot Air Temp: 0-150C,
REDLINE INTERCOOLER
GTR SIZE RM800NEG
GTR Size : Core size 600*300*76, Polished aluminium, 770mm over all length,
3 inch (75mm) inlet and outlet, Compressed air flow rate of 750 cubic - feet/min
Good for up to 600HP (450KW), Low pressure drop 0.2psi at 15psi, Strong bar and plate design tested to over 80psi.
REDLINE INTERCOOLER
GTR SIZE RM700NEG
GTR Size : Core Size 600*283*70, Overall Size 1025*283*70.. Awesome core to make a custom front mount kit, Good for up to 800HP (450KW). Low pressure drop 0.2psi at 15psi. Strong bar and plate design tested to over 80psi. It has a very small pressure drop across the end tanksat 15 psi the outlet shows 14.8 psi with a temperature drop from 120 degrees to 28 degrees
ANd many other size available.....
ww.Redzoneconnection.com
[email protected]http://www.redzoconnection.com
CALL 012-2698554
