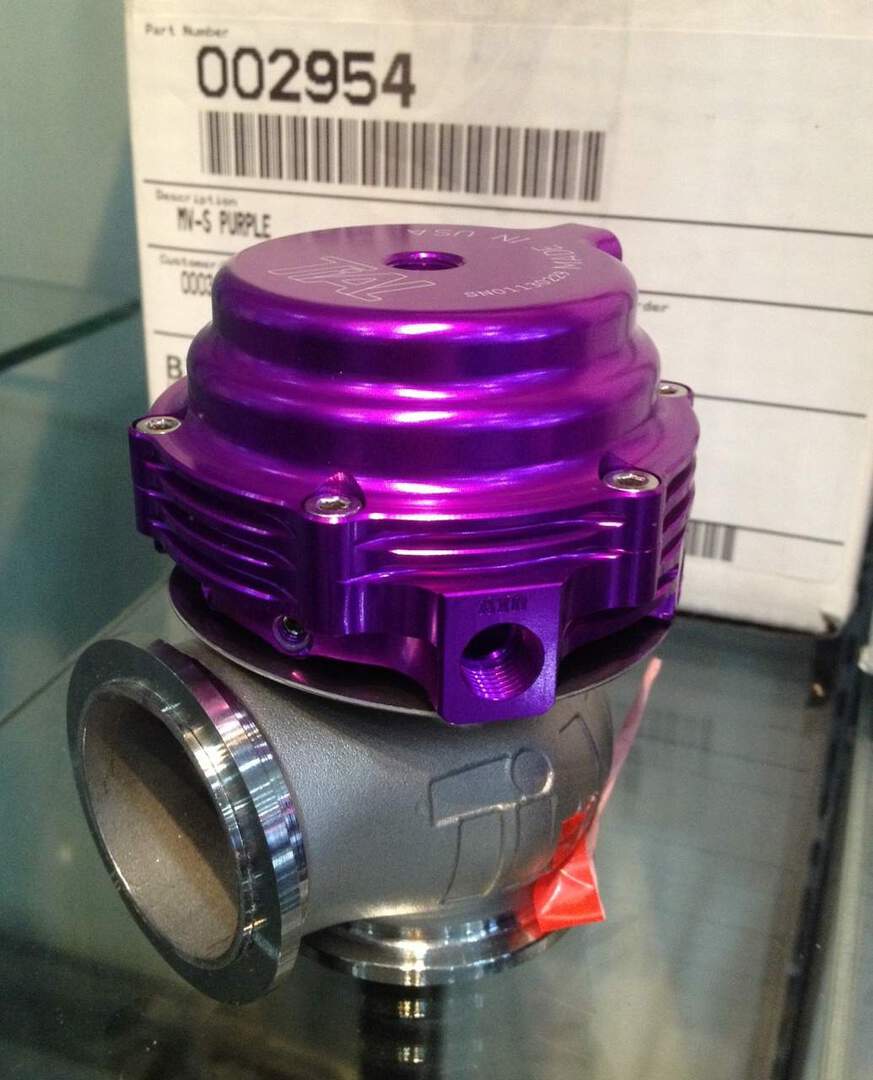

Tial MVS 38MM Wastegate with 7 Springs Option
High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
High temperature silicone Nomex reinforced actuator diaphragm.
17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C).
Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
All Stainless Steel hardware.
Mating weld flanges are 304L
Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
3 lower ports and two top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
Ultra compact design fits in very tight spaces, the unit stands only 3.7" tall, more compact than any other external wastegate on the market today.
V-Band inlet and outlet make install easy, flanges and clamps are in the box!
Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator top to keep the temperatures down in extreme conditions such as road racing. These are leak tested after installation from the factory and can be removed if not utilized.
Interested please contact us @ [email protected]
We are located in Bandar Sunway opposite Sunway College.Behind Works Engineering & N1 Racing
Same row with ATS Plus & Trial Performance
D`s Garage
No.37,Jalan PJS 11/9
Bandar Sunway 46150
Petaling Jaya
012-2206117 (MATT)
016-9973300 (DENNY)
Dealers are Most welcome!!! Price can be alot lower for Quantity purchase!
Check out our D`s Garage sales item.
Find us in Facebook D`s Garage.
