Double Din Audiolab AL-72HDGPS

[multigesture]

Player In-Built PAPAGO X8 GPS System.

LCD Panel:
-Screen Size: 6.95" Digital LCD --Panel with Resolution of 800x480
-Touchscreen Control
-Image Brightness /Contrast/Color /Saturation adjustable

DVD Player:
-Auto Lid open/ close slot-in DVD loader
-Super Anti-Shock System (ESP Function)
-Compatible With DIVX5.0/DVD/VCD/MP3/CD/CD-RW/JPEG
-Play in Memory, Random, Repeat

Bluetooth:
-With Microphone in the Control Panel
-Bluetooth Format: ONTOPAAT
-Professional Design to Get Rid of Echo

Radio Tuner:
-With 18 FM Stations and 12 AM Stations Preset
-FM (3*6)87.5-108MHz Increment 0.05MHz
-AM (2*6)522-1620KHz Increment: 9 KHz
Audio and Video Input and

Output:
-Built in amplifier FR/FL/RR/RL 4--Channel Audio Output
-Two Video Output
-One Channel Video Input for Rear View Camera, Parking Sensor, TV and other Video Input
-AUX Audio R/L Input (RCA)
4?5W Surround Stereo
-DSP Preset EQ / Rock / Jazz / Classic / Pop
-Electronic Volume Control (Treble, Bass, Balance, Fader)

SD Card Slot and USB Input:
-2 SD Card Slot: 1 for Media, 1 for GPS Map
-1 USB Input

Others:
-Control Panel Night Illumination Function
-Steering Wheel Control
-Automatically Switching to Rear -View Video When Reversing
-Automatically Switching to Mobilephone Input When Getting Bluetooth Signal
-Ipod Compatible

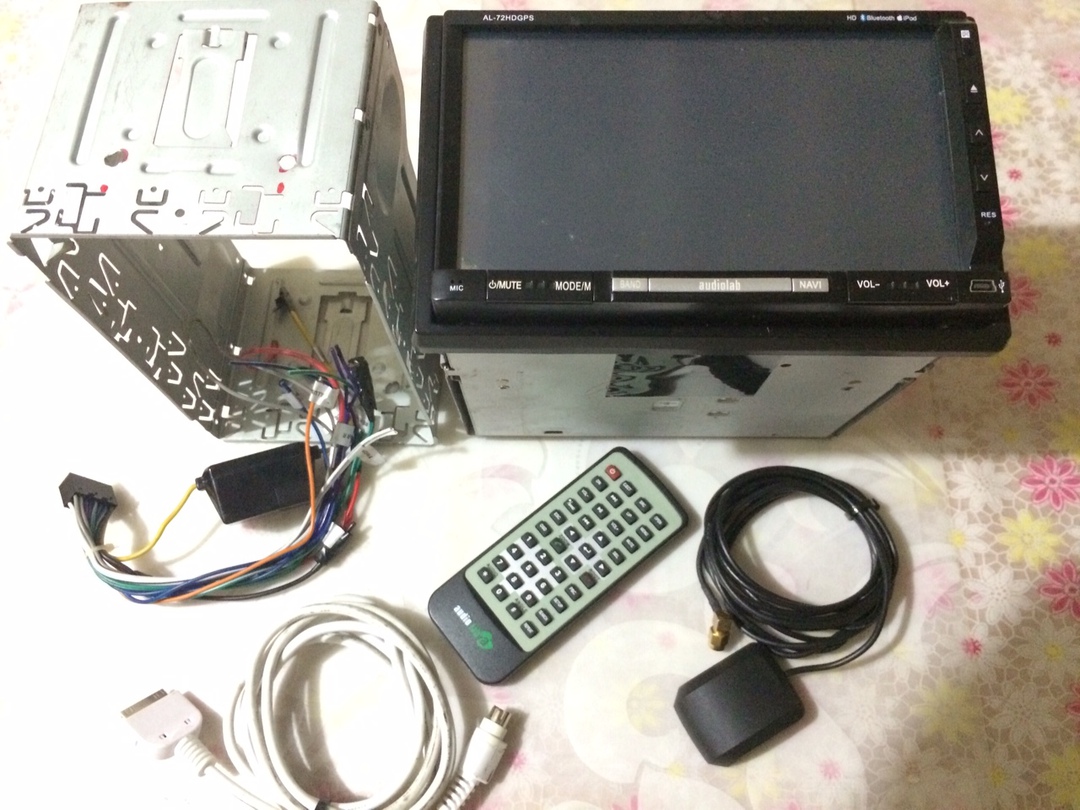

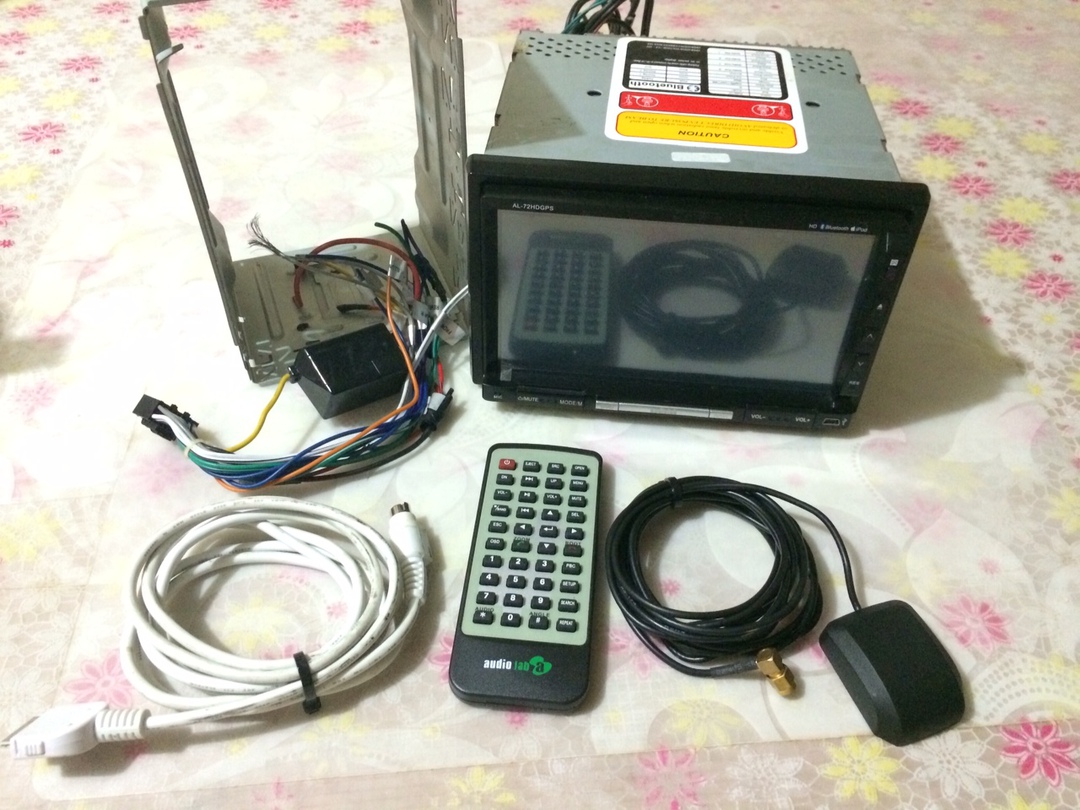

Structure and Accessories:
-Standard Double Din Mounting Size with OEM-fit Front Cover

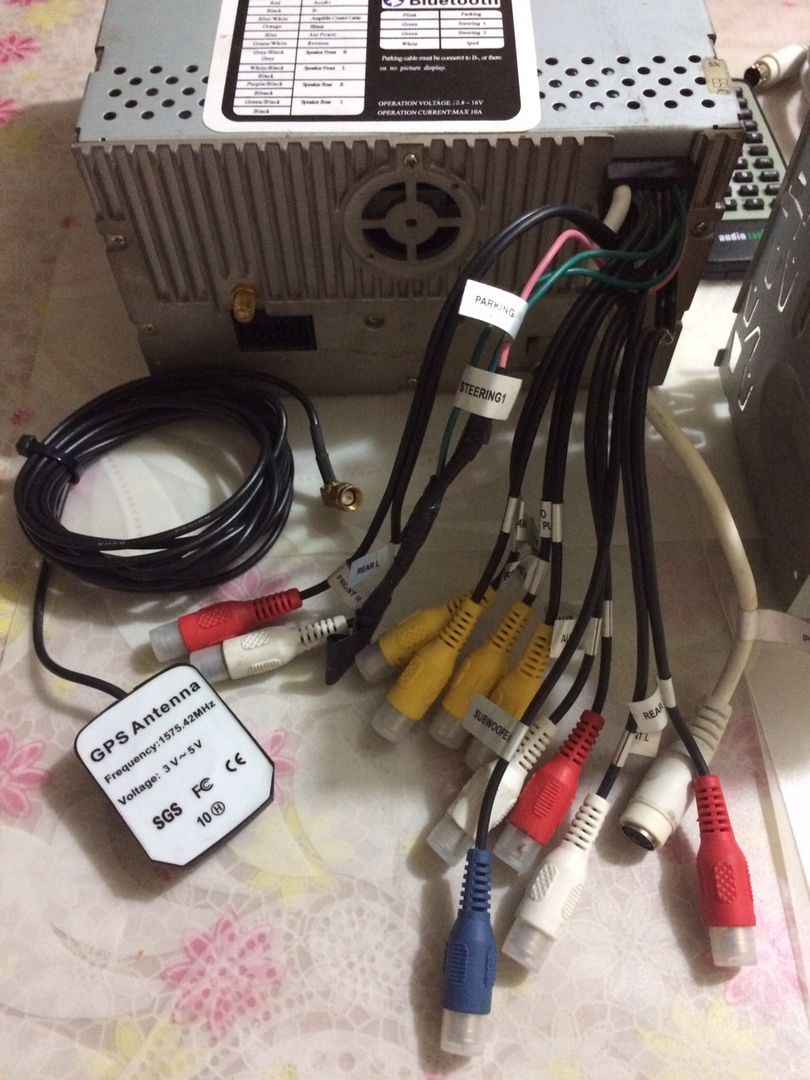

-Factory Wire harness and Connectors
-With Remote Control
-Plug & Player System with CAN BUS

SPECIFICATION
-COLLECTIVITY PART
-Voltage : DC10V ~ 12V
-Load : 4 ohms
-Max.Output : 60Wx4
-EQ : dB
-Bass 100Mhz
-Treble 10KHz
-Output : Audio 44 CH output
-Video: (AV) CVBS AV output
-FM SECTION
Frequency Range : 87.5-108Mhz
-Scan Sensitivity : 23dB
-Usable Sensitivity : 7dB
-S/N Ratio : 65dB (1KHz odB)
-Crosstalk : 32dB
-Frequency Response : 40Hz - 16KHz
-Intermediate Frequency : 10.7MHz

AM SECTION
-Frequency Range : 522-1620KHz
-Scan Sensitivity : 45dB
-Usage Sensitivity : 28dB
-S/N Ration : 45dB (1KHz odB)
-Frequency Response : 40Hz - 16KHz
-Intermediate Frequency : 450KHz

DVD SECTION
-Video System : Auto/NTSC/PAL
-Channel : 2
-S/N Ratio : 75dB (1KHz 0dB)
-Frequency Response : 40Hz - 16KHz
-Crosstalk : 55dB
-Dynamic Range : 80dB
-Distortion : 0.4%

VCD/CD SECTION
-Video System : Auto/NTSC/PAL
-Channel : 2
-S/N Ratio : 75dB (1KHz 0dB)
-Frequency Response : 55dB
-Crosstalk : 40Hz - 16KHz
-Dynamic Range : 70dB
-Distortion : 0.4%

Features:
-Input : Audio: 2 CH input
-Video: AV CVBS (AV) Input
-DVDC DVDC input
-Video Spec : Video Range: 1.0VP-P (75ohms)
-Frequency characteristic: 20 ~ 20KHz(?dB)
-Unit dimension : 184x178x100mm (depth x width x height)
-Installation Dimension: 210x178x100mm (depth x width x height)
-Unit Weight : 2.62 kgs
-Usage Temperature : -10 ~ +60
-Usage Humidity : 15 ~ 75%

DISC COMPATIBLE :

-DVD/SVCD/VCD/DVCD/CD/CD-R/MP4/mp3/Mr.OKO
-Made In Taiwan
-PAPAGO X8 3D GPS Navigator BOX
-GPS Mapping: Original License Papago X8 (3D Building & Junction View)
-Map Included: Malaysia (Sabah & Sarawak), Singapore, Thailand, Indonesia
-Full Navigation System: Voice Guide, Route Plan
-Operation System: Win CE 5.0/600MHZ
-Uploading Maps by SD Car and -Upgrading by USB Input
-Working with Radio/DVD Player at the same time

- Serious buyer, tq.

- Price: RM525 (nego)
- Cod: Gombak & Selayang area
- Used 1 year only.
- Kindly call or wtsup me (0164105954)
