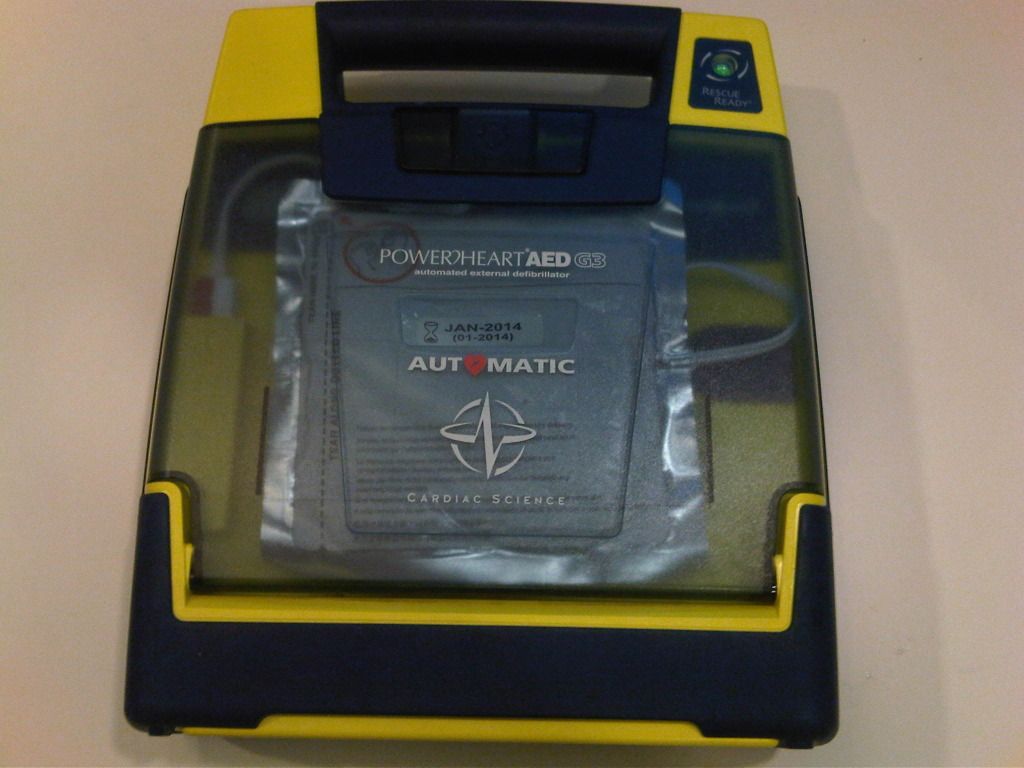

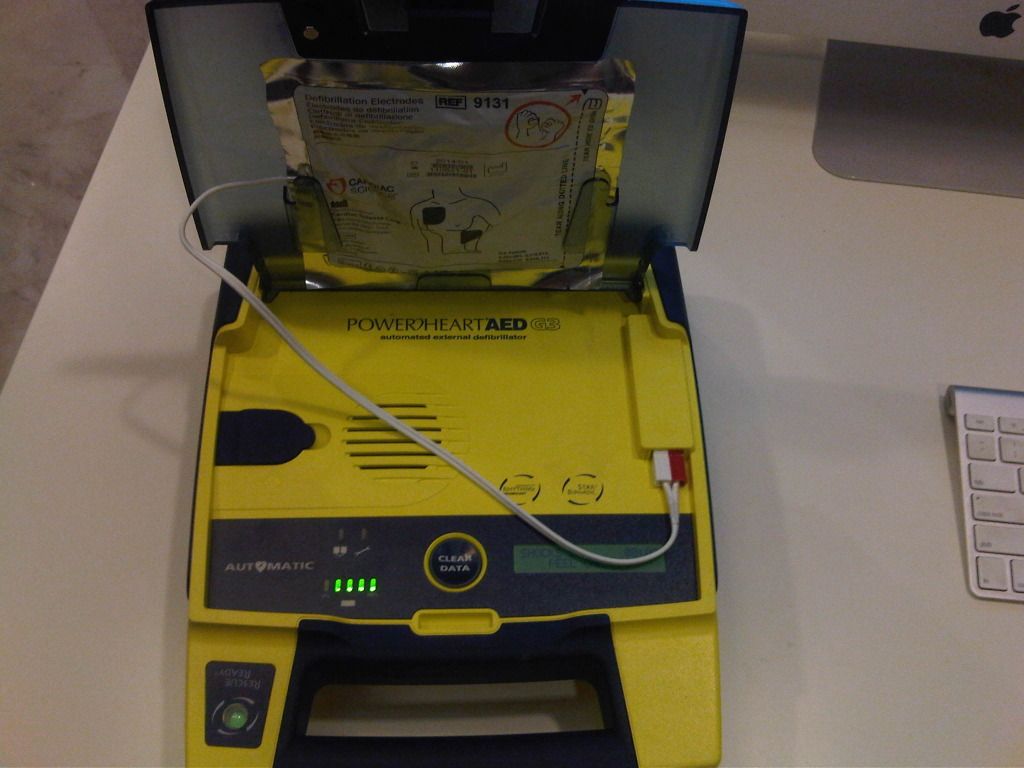

Automatic and Semi-Automatic Defibrillator
The AED G3 Automatic and Semi-Automatic defibrillators are two dependable members of our automated external defibrillator family. The fully automatic AED administers a defibrillating shock (when appropriate) with no shock button for the user to press. The semi-automatic AED administers a defibrillating shock at the press of a button. Choose the portable defibrillator that's right for you.
Features
Rescue Ready defibrillator technology self-tests all main components (battery, hardware, software, and pads) daily. Powerheart Automatic and Semi-Automatic Defibrillators complete a partial charge of the high-voltage electronics weekly, and a full charge monthly.
Calculates electrical impedance and if subsequent shocks are necessary, our proprietary STAR biphasic technology escalates the energy to deliver therapy at an appropriate, higher level.
Warranty: A 7-year warranty on the AED.
A 4-year full battery operational replacement guarantee.
Benefits
Reliability. Both Powerheart automatic and semi-automatic defibrillators are Rescue Ready when needed.
Simplicity. Almost anyone can use these defibrillators.
Reassuring. The AED knows when to (and when not to) deliver the defibrillation shock so users don't have to worry about "doing it right."
Comprehensive. The text screen is helpful in noisy and chaotic environments.
DEFIBRILLATOR
Operations: Semi-automatic or fully automatic
Waveform: STAR® biphasic truncated exponential
Energy (J) range available: Escalating variable energy (VE) 95J to 351J
Protocols: 5 energy protocols available
Factory default (nominal): 200VE, 300VE, 300VE
Voice prompts: Clear, concise voice prompts guide user through the rescue
Text screen: Displays rescue prompts to guide user through rescue process as well as additional critical rescue information for EMS responders
Visible indicators: Rescue Ready status indicator, SmartGauge battery status indicator, service indicator, pad indicator, text display
Audible alerts: voice prompt, system alert
Synchronized shock: built-in automatic synchronization feature
Pacemaker pulse detection: Yes
Programmable: Yes, via MDLink®
Pediatric capability: Yes
Warranty: 7 years
PADS
Minimum combined surface area: 35.3 sq in (228 cm²)
Extended length of lead wire: 4.3 ft (1.3 m)
Supplied: Self-checking, pre-connected to the AED
Type: Adult, pre-gelled, self-adhesive, disposable, non-polarized (identical pads can be placed in either position) defibrillation pads
Shelf life: 2 years
BATTERY
Type: IntelliSense® lithium battery
Guarantee: 4-year, full operational replacement
AUTOMATIC SELF-TESTS
Daily:
Battery, pads (presence and function), internal electronics, SHOCK/CONTINUE button, and software
Weekly:
Battery, pads (presence and function), internal electronics, partial energy charge, SHOCK/CONTINUE button, and software
Monthly:
Battery, pads (presence and function), internal electronics, full energy charge cycle, SHOCK/CONTINUE button, and software
EVENT DOCUMENTATION
Type: Internal memory
Internal memory: 60 minutes ECG data with event annotation, multiple rescue functionality
ECG playback: Viewable via Rescuelink® software via PC
Communications: Serial port or USB (via adapter) for PC with Windows
Clock synchronization: Rescue event time stamp of event data
DIMENSIONS (H x D x W):
3.3 in x 12.4 in x 10.6 in (8 cm x 31 cm x 27 cm)
WEIGHT:
6.6 lb (3.1 kg)
* Product comes with training, medical + CPR training for 15 people*
For more information, product demonstration and inquiries on other products and services, kindly call +6019200012(8)
