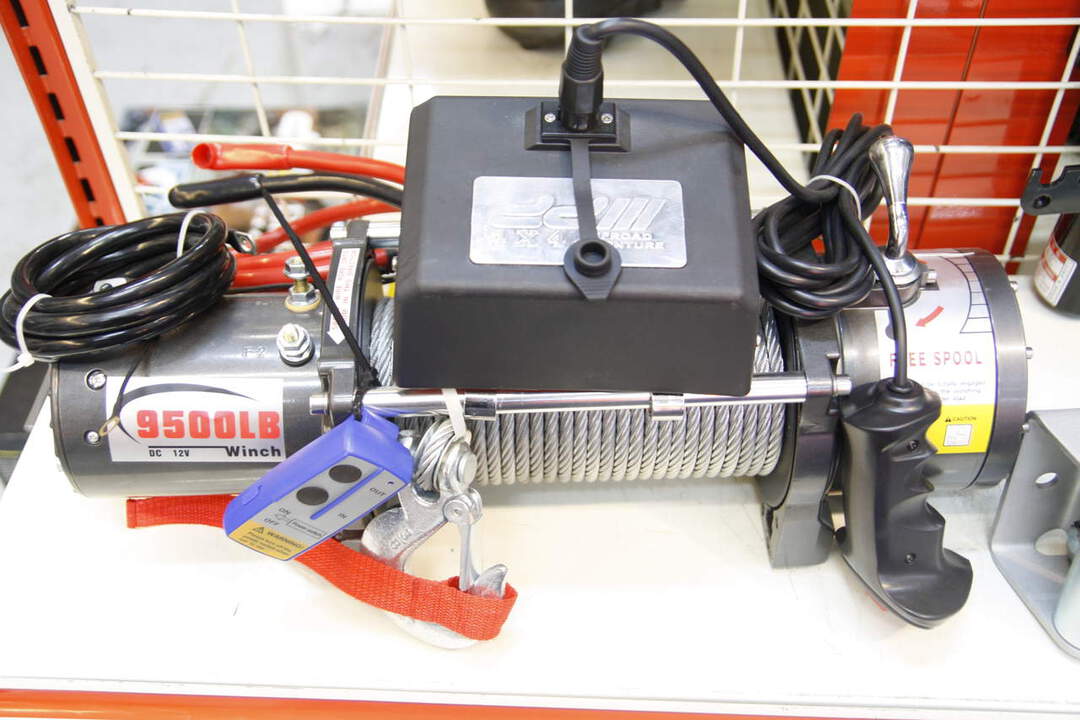

* D&D OFFROAD ADVENTURE WINCH
*BRAND NEW
Efficient 5.5 HP 12V DC series wound electric reversible motor
-Proven three-stage planetary gear system design for fast line speed
-Strong automatic load-holing brake for strength and reliability
-Clutch disengages planetary gear system for free spooling
-Weather resistance remote mounted solenoid assembly
-4 Way roller fairlead
Rated line pull: 9500 Lbs (4310kgs) single line.
Motor: Series wound
6.0 hp /4.4kw,12V DC
8.1 hp /6.0kw,24V DC
Gear Train: 3 stage planetary
Gear ratio: 216: 1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Battery: Recommended 650 CCA minimum for winching
Battery: 25mm2,72″(1.83m)
Fairlead: 4-way Roller fairlead
Wire rope: 5/16"×92'(8.3mm ×28m)
Drum size: 2.5"×9.0"(64mm×224mm)
Dimensions: 23"×6.6"×8.4"( 552mm×168mm×214mm)
Mounting bolt
pattern 10"×4.5"(254mm×114.3mm)
N.W: 86 lbs (39kgs)
*SUITABLE FOR 4X4 OFF ON ROAD CARS
* TOYOTA LAND CRUISER BJ40 SAMURAI 60 LJ KZJ FJ PZJ HZJ 75 78 NINJA 80 PRADO 90 100 SERIES HILUX SURF PICKUP LN106 167 185 VIGO NISSAN TERRANO SAFARI FRONTIER D22 NAVARA D40 MITSUBISHI STORM EVO PAJERO L049 V BODY V73 TRITON CHALLENGER ISUZU TROOPER BIGHORN MILK D MAX FORD RANGER MAZDA FIGHTER JEEP GRAND CHEROKEE WRANGLER LAND ROVER DEFENDER DISCOVERY 3 TATA SUZUKI VITARA JIMMY 410 413 FORTUNER
*AVAILABLE ALSO D&D OFFROAD WINCH 8288LB 12000LB 12500LB ATV WINCH 3000LB
D&D performance s/b
-no.18&20,jalan pjs 11/7,bandar sunway,46150
petaling jaya,selangor,malaysia.
tel:+603-56380888
+603-56370888.
fax:+603-56316888.
email:[email protected]
hp:+60163328136 seng
+60162111820 kenny
+60162173767 frankie
-any enquiry please call or email us
