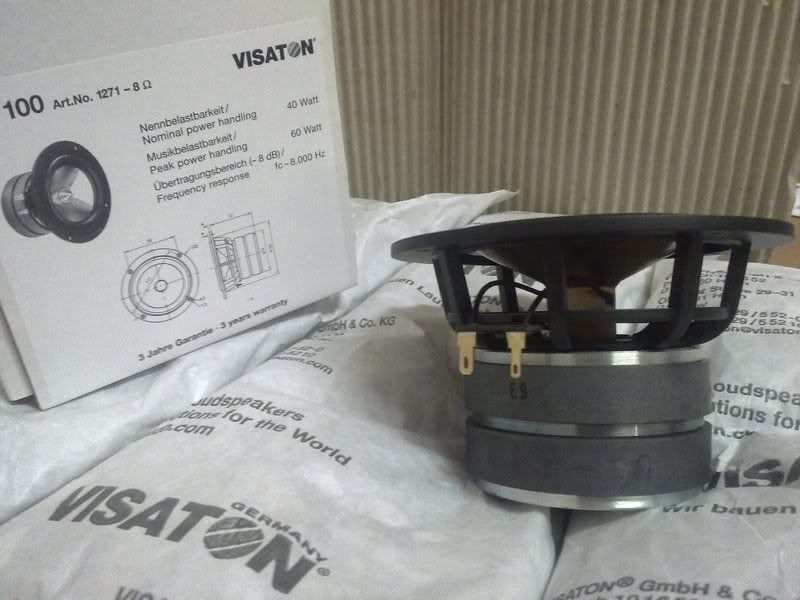

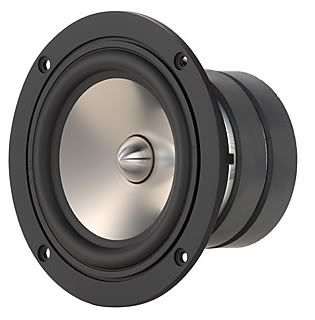

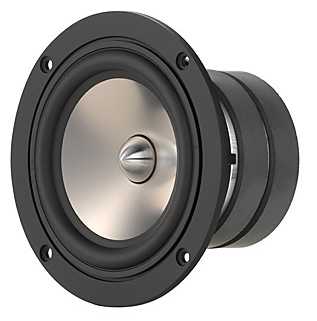

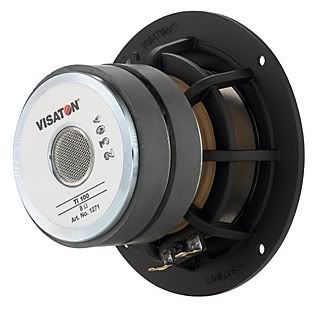

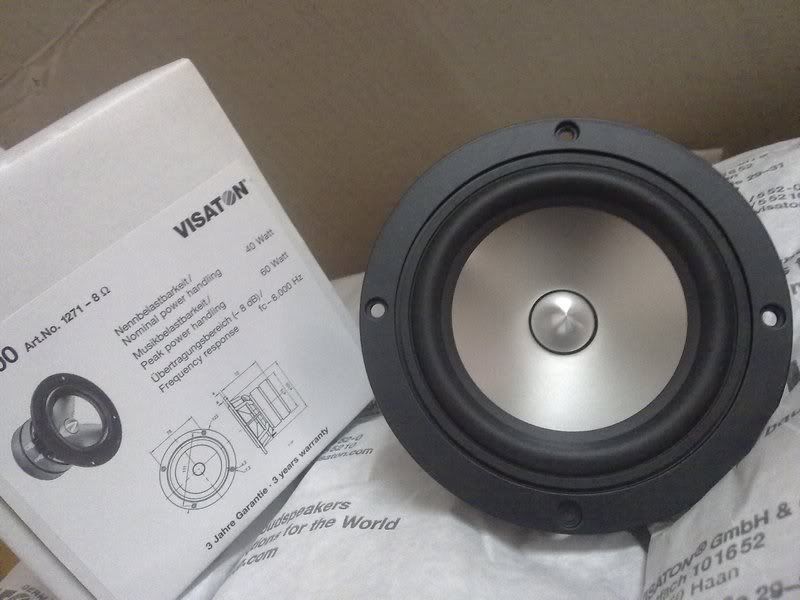

VISATON Ti100
10 cm (4") High-End Low-Midrange Driver
Pure Titanium cone with Phase Plug
[FONT="]
[/FONT]
[FONT="]- [/FONT]The carefully designed cone combines with the shape and material of the surround and the adhesives to avoid cone resonance.
-The shape of the basket with its large aperture and rear-ventilated damper coupled with the open voice coil with its phase plug produce the lowest possible mechanical losses and produce a correspondingly high mechanical Qfactor.
-As a result of the construction using double magnets the TI 100 is also magnetically compensated.
- The TI 100 is ideal as a mid-bass unit in smaller high end shelf speakers or as a mid-range unit in high-end multi-way speakers design.
Visaton - Lautsprecher und Zubehör, Loudspeakers and Accessories
4/5 * STAR
Review: Zaph|Audio
Visaton Ti100
Cost: $189
Usability:
Build Quality:
Consistency:
Value:
Comments: Titanium cone midwoofer with a straight cone profile. Very well built but also very expensive. Smooth response with a large breakup node at 6.5kHz. Class leading harmonic distortion from 100-1kHz but rising above that. Low HD along with a low Le point to an excellent motor design. This will sound the best crossed around 1600hz to a large format tweeter, however it could work fine crossed higher depending on your tolerance of the 3rd order HD peak at 1800 hz. Tested July 2007.
PRICE: RM1,200 per pair.
Contact me at:
012-9142998 (Lim)
10 cm (4") High-End Low-Midrange Driver
Pure Titanium cone with Phase Plug
[FONT="]
[/FONT]
[FONT="]- [/FONT]The carefully designed cone combines with the shape and material of the surround and the adhesives to avoid cone resonance.
-The shape of the basket with its large aperture and rear-ventilated damper coupled with the open voice coil with its phase plug produce the lowest possible mechanical losses and produce a correspondingly high mechanical Qfactor.
-As a result of the construction using double magnets the TI 100 is also magnetically compensated.
- The TI 100 is ideal as a mid-bass unit in smaller high end shelf speakers or as a mid-range unit in high-end multi-way speakers design.
Technical Data:
Rated power
40 W
Maximum power
60 W
Nominal impedance Z
8 Ohm
Frequency response
fu–20000 Hz
(fu: Lower cut-off frequency depending on cabinet)
.
Mean sound pressure level
86 dB (1 W/1 m)
Angle of sound emmision
120°/4000 Hz
Maximum cone displacement
+/−4 mm
Resonance frequency fs
62 Hz
Magnetic induction
1,2 T
Magnetic flux
300 µWb
Height of front pole-plate
4 mm
Voice coil diameter
20 mm
Height of winding
8,5 mm

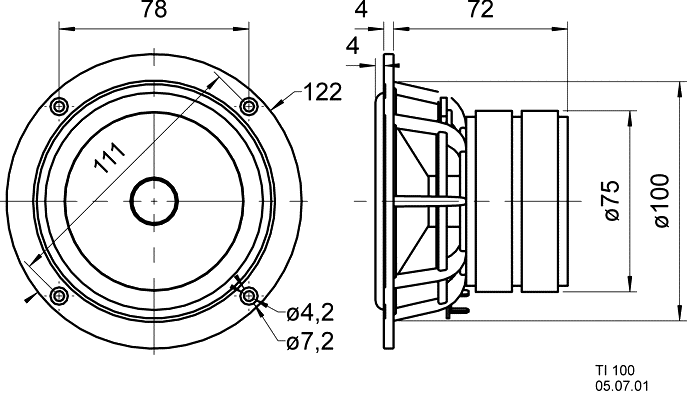

Cutout diameter
101 mm
Net weight
1,05 kg
D.C. resistance Rdc
6,0 Ohm
Mechanical Q factor Qms
7,05
Electrical Q factor Qes
0,40
Total Q factor Qts
0,38
Equivalent volume Vas
6,9 l
Effective piston area Sd
54 cm²
Dynamically moved mass Mms
4 g
Force factor Bxl
4,8 Tm
Inductance of the voice coil L
0,7 mH
Visaton - Lautsprecher und Zubehör, Loudspeakers and Accessories
4/5 * STAR
Review: Zaph|Audio
Visaton Ti100
Usability:
Build Quality:
Consistency:
Value:
Comments: Titanium cone midwoofer with a straight cone profile. Very well built but also very expensive. Smooth response with a large breakup node at 6.5kHz. Class leading harmonic distortion from 100-1kHz but rising above that. Low HD along with a low Le point to an excellent motor design. This will sound the best crossed around 1600hz to a large format tweeter, however it could work fine crossed higher depending on your tolerance of the 3rd order HD peak at 1800 hz. Tested July 2007.
PRICE: RM1,200 per pair.
Contact me at:
012-9142998 (Lim)
