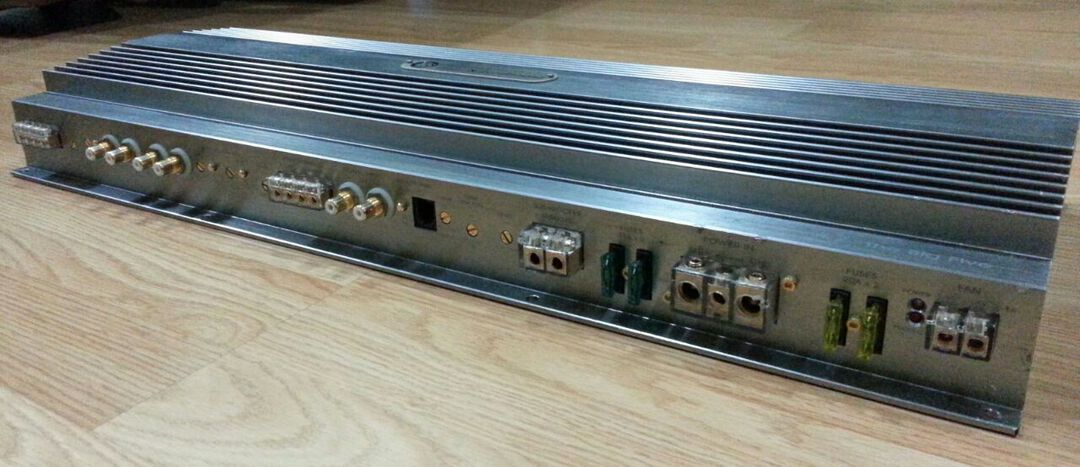

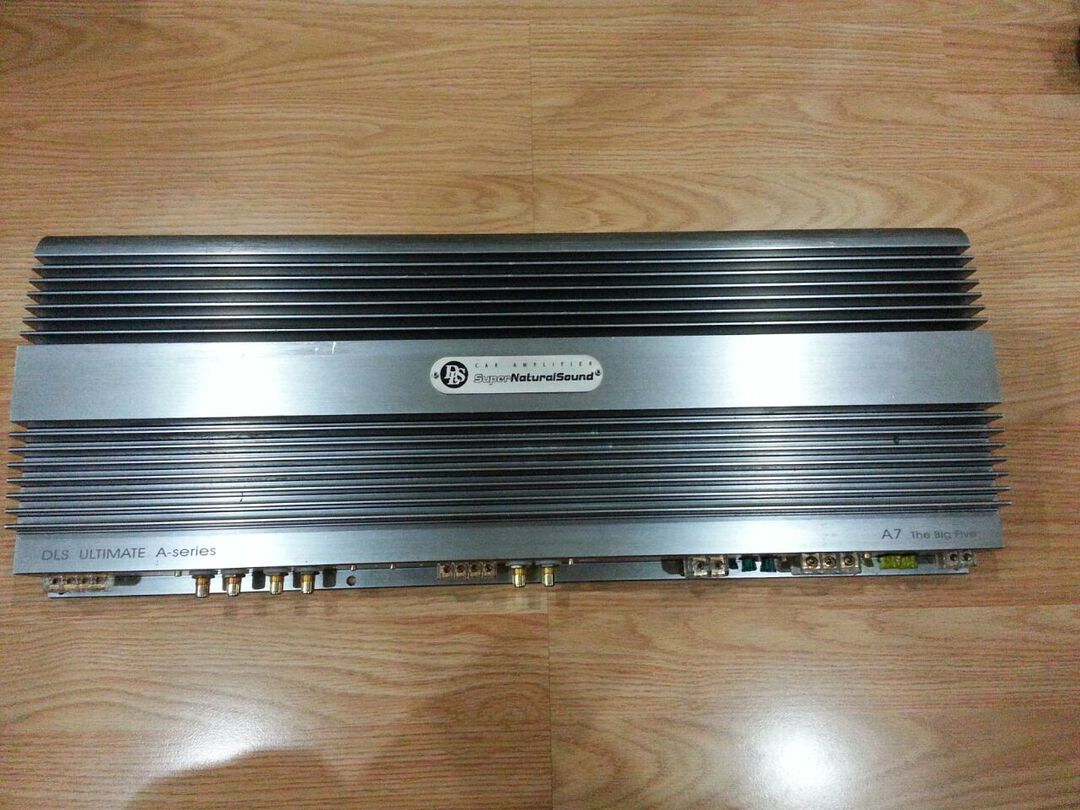

Letting go DLS A7 amplifier
Powerfull SQ 5 channel amp.
No regret for sure.
item is in very good condition.
Pm if interested.
Nego nego nego.....
0122503264
Specifications
Number of channels 5
Amplifier class AB
Output power in 2 ohm 4 x 100 W RMS
Output power in 4 ohm 4 x 60 W RMS
Mono bridge mode 4 ohm 2 x 200 W RMS
Mono sub channel output in 1 ohm 600 W RMS
Mono sub channel 2 ohm 440 W RMS
Mono sub channel 4 ohm 300 W RMS
Damping factor > 200
S/N ratio, A-weighted > 100 dB
Frequency range 10 Hz - 50 kHz
Input sensitivity 0,3 - 7 V
Input impedance > 10 kohm
Filters channel A & B HP: 80 - 400 Hz / 1,6 - 8 kHz (x20)
Filters channel C & D HP: 80 - 400 Hz. LP: 0,3 - 4 kHz / 3 - 40 kHz (x10)
Phase control for subwoofers 0-180 degrees cont. variable
Low level output No
Remote bass level control Yes
Remote phase shift control Yes
High level input with auto start No
Integrated fan No
External cooling fan terminal Yes
Power consumption (idle) 1,1A
Power consumption (max) 120 A
Rec. power cable Minimum 4AWG / 21 mm2
Fuses 2 x 35 A + 2 x 20 A
Dimension (W x D x H) 605 x 240 x 73 mm (23,82 x 9,45 x 2,87 inches)
Weight 8,1 kg ( 17,86 lb)
Powerfull SQ 5 channel amp.
No regret for sure.
item is in very good condition.
Pm if interested.
Nego nego nego.....
0122503264
Specifications
Number of channels 5
Amplifier class AB
Output power in 2 ohm 4 x 100 W RMS
Output power in 4 ohm 4 x 60 W RMS
Mono bridge mode 4 ohm 2 x 200 W RMS
Mono sub channel output in 1 ohm 600 W RMS
Mono sub channel 2 ohm 440 W RMS
Mono sub channel 4 ohm 300 W RMS
Damping factor > 200
S/N ratio, A-weighted > 100 dB
Frequency range 10 Hz - 50 kHz
Input sensitivity 0,3 - 7 V
Input impedance > 10 kohm
Filters channel A & B HP: 80 - 400 Hz / 1,6 - 8 kHz (x20)
Filters channel C & D HP: 80 - 400 Hz. LP: 0,3 - 4 kHz / 3 - 40 kHz (x10)
Phase control for subwoofers 0-180 degrees cont. variable
Low level output No
Remote bass level control Yes
Remote phase shift control Yes
High level input with auto start No
Integrated fan No
External cooling fan terminal Yes
Power consumption (idle) 1,1A
Power consumption (max) 120 A
Rec. power cable Minimum 4AWG / 21 mm2
Fuses 2 x 35 A + 2 x 20 A
Dimension (W x D x H) 605 x 240 x 73 mm (23,82 x 9,45 x 2,87 inches)
Weight 8,1 kg ( 17,86 lb)
