25th Anniversary: The Kenwood eXcelon XXV-01D CD head unit is part of a special series of car stereo components to commemorate the 25th anniversary of Kenwood Car Electronics. These products are specially designed and tuned for superior audio performance. This receiver is equipped with specially developed power supply capacitors offering superior audio performance and high capacity. In addition, the receiver has high-quality OFC (oxygen-free copper) cables on its preamp outputs and auxiliary input.
Offset Dual Differential: The XXV-01D's high quality sound is produced by the unit's Offset Dual Differential (ODD) Digital-to-Analog system. Dual D/A converters are used, and the digital processing is isolated and controlled separately for the front channels to improve channel separation.
24-Bit Burr-Brown D-A Converter: The XXV-01D features an audiophile-quality 24-bit Burr-Brown digital-to-analog converter for superb CD sound. The Burr-Brown D-A converter maximizes the musical resolution of CDs, CD-R/Ws, and AAC/MP3/WMA-encoded discs.
Sound Field Control (S.F.C.): The unit's Sound Field Control features the following audio adjustments:
•Crossover (XOver):
•Front High Pass Filter:
•Center Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180 Hz, 220Hz, 250Hz, or Through (no filter)
•Slope: 12dB/Oct, 18dB/Oct, or 24dB/Oct
•Rear High Pass Filter:
•Center Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180 Hz, 220Hz, 250Hz, or Through (no filter)
•Slope: 12dB/Oct, 18dB/Oct, or 24dB/Oct
•Subwoofer Low Pass Filter: (adjustable when Subwoofer is "On")
•Center Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180 Hz, 220Hz, 250Hz, or Through (no filter)
•Slope: 12dB/Oct, 18dB/Oct, or 24dB/Oct
•Phase: Normal or Reverse
•Digital Time Alignment (DTA):
•Front Speakers: 0 to 20.33 feet in 1/6' increments
•Rear Speakers: 0 to 20.33 feet in 1/6' increments
•Subwoofer: 0 to 20.33 feet in 1/6' increments
•Seat Positions Settings: Choose between Front-Left, Front-Right, Front, or All
•Preset Memory: Recall Mode 1 & 2 and Memory Mode 1 & 2
Sound Management System (S.M.S.): In order to optimize the sound quality, you can use the Sound Management System to set the vehicle and speaker sizes. The S.M.S. settings include the following:
•Cabin Setting: Choose from Compact, Full Size Car, Wagon 1, Wagon 2, Mini Van 1, Mini Van 2, SUV, Mini Van Long, or Off
•Speaker Select Front: Choose from 4", 5", 6-1/2", 6-3/4", 7", 4" x 6", 5" x 7", 6" x 8", 6" x 9", 7" x 10", or O.E.M.
•Speaker Select Rear: Choose from 4", 5", 6-1/2", 6-3/4", 7", 4" x 6", 5" x 7", 6" x 8", 6" x 9", 7" x 10", O.E.M or None.
•Speaker Select Subwoofer: Choose from 6-1/2", 8", 10", 12", 15" or over, or None
•Preset Memory: Call Mode 1 & 2 and Memory Mode 1 & 2
Equalizer Control: Equalizer Control allows you to use one of the System Q presets, or set your own custom settings for the front and back speakers independently, using the 4-band Equalizer. The EQ adjustments are as follows:
•System Q Setting: You can select from Natural, Rock, Pops, Easy, Top 40, Jazz, or User.
•Equalizer Settings:
•Levels: Independent front and rear EQ level of -9dB to +9dB.
•Quality Setting: Independent front and rear Q setting of 0.25, 0.50, 1.00, or 2.00
•Center Frequency: Independent front and rear frequency settings from these 4 bands:
•Band 1: 60Hz, 80Hz, 100Hz, 120Hz, 160Hz, or 200Hz
•Band 2: 250Hz, 315Hz, 400Hz, 500Hz, 630Hz, 800Hz, or 1kHz
•Band 3: 1.25kHz, 1.6kHz, 2kHz, 2.5kHz, 3.15kHz, or 4kHz
•Band 4: 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz, or 16kHz
•Preset Memory: Call Mode 1 & 2 and Memory Mode 1 & 2
SRS WOW: The XXV-01D is equipped with SRS WOW, a technology developed by SRS (Sound Retrieval Systems) Labs, which restores the loss that occurs to compressed audio delivered over the Internet and broadcast media, and reduces the hollow-sounding effects caused by smaller speakers. SRS WOW incorporates other SRS technologies such as TruBass, Focus, and SRS for improving the sound of CDs and radio:
•TruBass: uses harmonics to enhance the bass frequencies
•Focus: adjusts the vertical position of the front speaker and sound image by virtual adjustment
•SRS 3D: creates a natural 3-dimensional sound field (not available for Tuner source)
WOW Control: You can select a WOW effect level (Low, Mid, High, or Through), each with a specific value for TruBass, Focus, and SRS 3D. You can also set your own values and store them under the WOW User memory:
•Focus: 1-9 or Off
•TruBass Front: 1-4 or Off
•TruBass Rear: 1-4 or Off
•SRS 3D: 1-4 or Off
DSP Bypass: You can bypass the unit's Digital Signal Processor (DSP) when you do not want the sound to be affected.
Volume Offset: The level of each source may be independently adjusted to prevent radical leaps in output volume when switching from one source to another. The available settings range from -8 to 0.
Built-in Amp Switch: If the audio signals are output to external amplifiers, you can turn off the internal amplifier to improve audio quality
buy new from malaysian dealer.
malaysian FM.

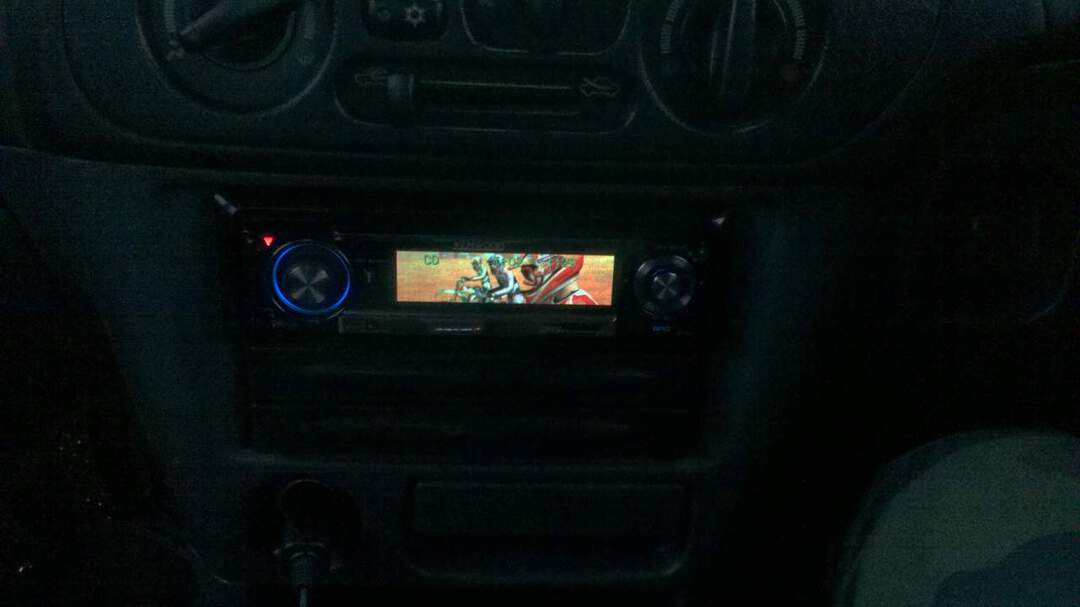

great working condition. never been repair.
sell coz upgrading.
