<< custom bracket for brake caliper upgrade >>

Chassis and Wheels

<< custom bracket for brake caliper upgrade >>

AvanT

Custom fabricator & CNC machining
Senior Member
Joined
Mar 20, 2009
Messages
360
Points
1,543
Please give us a call if U are planning to upgrade to bigger OEM or aftermarket brake calipers to improve your braking power.

Here is a list of machining services we offer. All are designed on computer & machined on precision CNC machines:



Machining new 4 x 100 PCD mounting holes on 5 x 114.3 PCD disc rotors
Machining new 5 x 114.3 PCD mounting holes on 4 x 114.3 PCD disc rotors
Custom made center cone to hold your disc rotors
To modify your wheel knuckles to fit your brake calipers
To custom design & fabricate bracket to bolt-on your brake calipers




[email protected]

012-283-3635


Attachments

  • IMG-20201020-WA0032.jpg
    60.4 KB · Views: 1,457
Last edited:
Nissan 4-pot brake calipers on Nissan Sentra N16


Attachments

  • N16.jpg
    205.5 KB · Views: 543
Evo7 4-pot brake calipers on Toyota Estima


Attachments

  • 9.jpg
    99.5 KB · Views: 373
Man, I wish you were offering this sooner. I would've continued with my brake project.

Do you do custom 'hats' for the 2-piece rotors?

Subaru 4-pot brake calipers on Subaru XV


Attachments

  • 10.jpg
    187.8 KB · Views: 268
  • 11.jpg
    180.2 KB · Views: 341
Nissan 4-pot brake calipers on Toyota MRS


Attachments

  • 14.jpg
    283.3 KB · Views: 313
  • 12.jpg
    70.4 KB · Views: 361
  • 13.jpg
    241 KB · Views: 332
Toyota 4-pot caliper on Toyota Harrier


Attachments

  • 15.jpg
    192.9 KB · Views: 354
Custom brake caliper brackets for Nissan GTR 34


Attachments

  • 16.jpg
    123.3 KB · Views: 356
Custom brake caliper brackets for Mazda CX5

BEFORE


Attachments

  • before-1.jpg
    30.3 KB · Views: 285
  • before-2.jpg
    30.9 KB · Views: 330

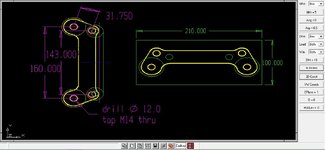

Custom brake caliper brackets for Mazda CX5

IN-PROCESS...


Attachments

  • relocate holes.jpg
    relocate holes.jpg
    178.2 KB · Views: 345
  • bracket design.jpg
    bracket design.jpg
    96.3 KB · Views: 358
  • backet.jpg
    307 KB · Views: 351
Custom brake caliper brackets for Mazda CX5

AFTER


Attachments

  • completed.jpg
    206.9 KB · Views: 342
  • back.jpg
    111.6 KB · Views: 299
  • front.jpg
    216.1 KB · Views: 349
CNC machining custom slots for disc rotor


Attachments

  • disc-1.jpg
    168.7 KB · Views: 283

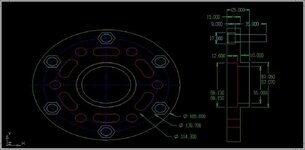

Custom designed low profile 15mm wheel adapter with hex bolts & dual PCD (114.3mm ->139.7mm)


Attachments

  • spacer drawing.jpg
    spacer drawing.jpg
    39.4 KB · Views: 218
  • IMG-20160719-WA0019.jpg
    46.9 KB · Views: 243
  • IMG-20160719-WA0017.jpg
    40.6 KB · Views: 241
  • adapter-1.jpg
    173.5 KB · Views: 197
  • adapter-2.jpg
    165 KB · Views: 229
Sorry bro Jambunk,
We do not stock brake caliper brackets because there is simply too many different car models, disc rotor & caliper combination & configuration. Every job is custom made from us.

CNC machining custom slots for VW MK6 disc rotor


Attachments

  • 20180112_165058_resized.jpg
    74.8 KB · Views: 200
Computer designed & CNC machined custom brake caliper bracket for Toyota Altis

Contact : 012-283-3635

1.jpg 2.jpg 3.jpg

Computer designed & CNC machined custom brake caliper bracket for Nissan Navara NP300

4-pot NISSAN caliper + 330mm disc rotor

Contact : 012-283-3635

11.jpg 22.jpg 33.jpg 44.jpg

Last edited:
Custom designed & CNC machined brake caliper bracket for Brembo 4-pot on Alfa Romeo

1.jpg 2.jpg 3.jpg
