Now: Recall for Prius and CT200h - Curtain Shield Airbag and EVAP system

Amirul

Resident Journalist

Amirul

Resident Journalist
Jun 7, 2016
213
112
43
Kuala Lumpur
www.zerotohundred.com


Following two global recalls on certain Toyota and Lexus models, UMW Toyota Motor Sdn Bhd (UMWT), the authorised importer and distributor of Toyota and Lexus models in Malaysia will carry out Sepcial Service Campaign (SSC).

The First recall: To fix the possible crack in welded areas for curtain shield airbag inflators. If the inflator separates, it could cause an injury to the present occupant.

The vehicles affected are:

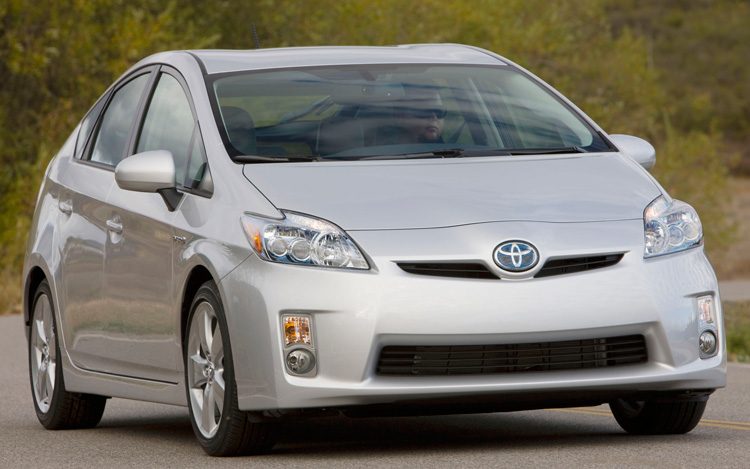

Toyota Prius: 3,500 units - produced between April 2009 to April 2012



Lexus CT200h: 1,700 units - produced between December 2010 to April 2012

Second recall is on the evaporative fuel emission control in which there may be a crack in the emission channel. A crack that could expand over time and may lead to potential fuel leak when the car is filled with a full tank of fuel.

The vehicles afftected are:


Toyota Prius: 6,000 units - produced between April 2009 to November 2013
Lexus CT200h: 3,000 units - produced between December 2010 to December 2013

The SSC work will take approximately 2-3 hours, subject to the work schedule at the service centre.

Owners of the affected vehicles will be notified and are requested to bring their cars for the necessary fix at the authorised Toyota and Lexus service centres. All costs for labour and parts involved will be beared by UMW Toyota Motor.

For more information, contact Toyota and Lexus free-phone at 1-800-8-TOYOTA (869682) and 1-800-8-LEXUS (53987) or kindly visit Toyota or Lexus service centre for assistance.

With some research we found an interesting article relating to the Prius's Curtain Shield Airbag removal and assembly titled, although the process practiced elsewhere may be different, this remains a reference for curious owners:

Title:
SUPPLEMENTAL RESTRAINT SYSTEMS: CURTAIN SHIELD AIRBAG ASSEMBLY: REMOVAL; 2010 MY Prius [04/2009 -] Link Here

<table id="RM000000UXG044X" class="frame mce-item-table" border="0" cellpadding="4" width="100%"><colgroup> <col> </colgroup><tbody><tr><td class="frame"><table class="side" border="1" width="100%"><tbody><tr><td class="side" colspan="1" align="left" valign="top">Last Modified: 6-9-2016</td><td class="side">6.6 A</td><td class="side">Doc ID: RM000000UXG044X</td></tr><tr><td class="side" align="left" valign="top">Model Year Start: 2010</td><td class="side" align="left" valign="top">Model: Prius</td><td class="side" align="left" valign="top">Prod Date Range: [04/2009 - ]</td></tr><tr><td class="side" colspan="3" align="left" valign="top">Title: SUPPLEMENTAL RESTRAINT SYSTEMS: CURTAIN SHIELD AIRBAG ASSEMBLY: REMOVAL; 2010 MY Prius [04/2009 - ]</td></tr></tbody></table>REMOVAL



HINT:

  • Use the same procedure for the RH side and LH side.
  • The procedure listed below is for the LH side.



1. PRECAUTION
CAUTION:
Be sure to read Precaution thoroughly before servicing .


2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected .


3. REMOVE ROOF HEADLINING ASSEMBLY
HINT:
Refer to the procedure up to Remove Roof Headlining Assembly .


4. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY
CAUTION:
When storing the curtain shield airbag assembly, keep the airbag deployment side facing upward.
(a) Check that the power switch is off.
(b) Check that the cable is disconnected from the negative (-) battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
<table class="mce-item-table" border="0" width="100%"><tbody><tr><td class="side">(c) Using a screwdriver with the tip wrapped with protective tape, release the airbag connector lock and disconnect the curtain shield airbag connector.
Text in Illustration

<table border="1" width="100%"><colgroup> <col width=""> <col width=""> </colgroup><tbody><tr><td align="center">*1
</td><td>Protective Tape
</td></tr></tbody></table>NOTICE:
When disconnecting any airbag connector, take care not to damage the airbag wire harness.
</td><td class="sidsid" align="right">
</td></tr></tbody></table>(d) Remove the 5 bolts.

(e) Remove the 4 clips.

<table class="mce-item-table" border="0" width="100%"><tbody><tr><td class="side">(1) Using a clip remover, remove the 4 pins.
Text in Illustration

<table border="1" width="100%"><colgroup> <col width=""> <col width=""> </colgroup><tbody><tr><td align="center">*1
</td><td>Pin
</td></tr><tr><td align="center">*2
</td><td>Clip
</td></tr><tr><td align="center">*3
</td><td>Airbag
</td></tr><tr><td align="center">*4
</td><td valign="middle">Body
</td></tr></tbody></table></td><td class="sidsid" align="right">
</td></tr></tbody></table><table class="mce-item-table" border="0" width="100%"><tbody><tr><td class="side">(2) Using a screwdriver with the tip wrapped with protective tape, separate the 4 clips and curtain shield airbag assembly from the body as shown in the illustration.
Text in Illustration

<table border="1" width="100%"><colgroup> <col width=""> <col width=""> </colgroup><tbody><tr><td align="center">*1
</td><td>Clip
</td></tr><tr><td align="center">*2
</td><td>Airbag
</td></tr><tr><td align="center">*3
</td><td>Body
</td></tr><tr><td align="center">*4
</td><td valign="middle">Spacer
</td></tr></tbody></table></td><td class="sidsid" align="right">
</td></tr></tbody></table>(f) Disengage the 5 hooks to remove the curtain shield airbag assembly.

(g) Remove the 4 clips and 4 spacers from the curtain shield airbag assembly.
