Hi guys. I would like to share my experience building a voltage stabilizer for my old Civic. The purpose of this device, as with all automotive voltage stabilizers, is to reduce electrical noise and distortions within the vehicle. Electrical noise comes from distributor, alternator, automatic transmission solenoids, certain relays etc.

Okay, back to the main story. First, after figuring out the space available under the bonnet and taking the measurements, I design the circuit using a circuit design software. The only suitable place I can find is between the battery and intake manifold. I want to have around 100,000uF of total capacitance. After researching on the internet, I found out that in order for the voltage stabilizer to 'absorb' or dampen many types of electrical noises within the car, it is also important to reduce the ESR (equivalent series resistance) so that the currents from the electrical noise can easily flow in and out of the device. So in this case, instead of using some big capacitors like the 50,000uF monsters, I use many smaller ones.



3D view of the design:



It turns out I can only fit 14 units of 4700uF 35V caps and 11 units of 2200uF 35V caps within the space available. The total capacitance is 90,000uF, pretty close to my target. Next, I use a rapid prototyping CnC machine to fabricate the printed circuit board (PCB). Modern tech certainly made life easier. No more messing around with the nasty ferric chloride PCB etching solution. :thefinger:





The completed bare board:



After the caps are soldered:



I put a 20 amp fuse for protection:



Hot glue is applied between the caps to make them more rigid. Engine vibrations can make solder joints crack.



The main copper tracks are soldered with extra layer of lead to lower the resistance and improve current carrying capacity:



I made up the casing using some wood planks. Hopefully the low heat conductivity of wood will increase the life of the capacitors. Living under the bonnet sure will suck the life out of them. :rolleyes:



I drill some holes for the PCB stand and put some industrial resin there to support it.

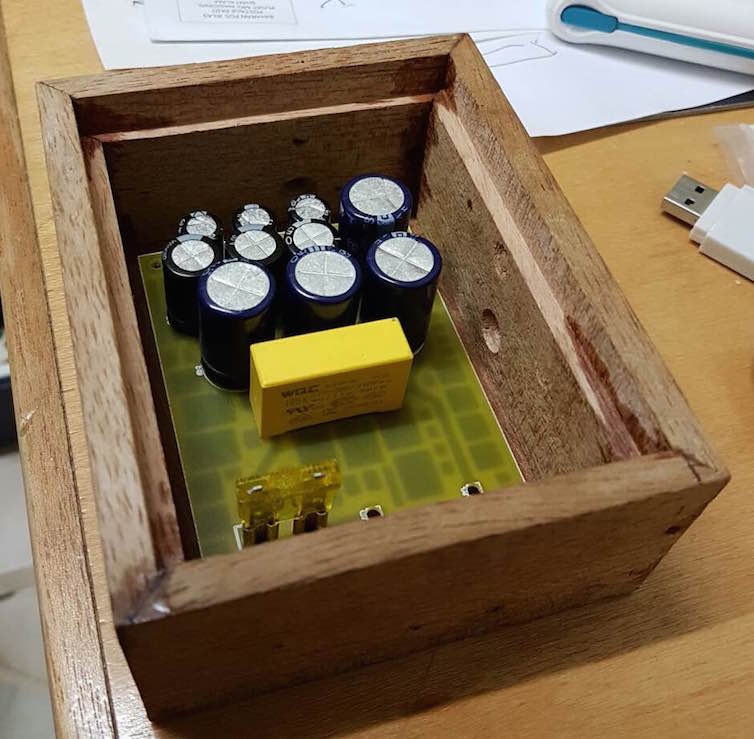

After the + and - wires are soldered, the board is put into the wooden box.



After the connectors are put to the wire ends, I use some heat shrink tube to secure them. The device is now completed. :love:



I secure it to the battery using cable ties. The box is actually supported by the battery holder.



I haven't got time to test this device yet. I'll let you guys know the results later. :listen:

Last edited:

g4i8y0t

1,000 RPM
Senior Member

g4i8y0t

1,000 RPM
Senior Member
Aug 5, 2010
1,216
330
683
Kedah
Ok, here's the review. While driving to work this morning, I noticed the pick-up and lower end response have improve a bit. Usually when I put in the reverse gear, I need to depress the throttle or the engine would stall. Small Honda engines in general are not known for their low end torque. :sleep: After installing this device, I still need to give a bit of throttle but not as much as before. Can't comment on top end response yet as the drive was quite short.


g4i8y0t

1,000 RPM
Senior Member

g4i8y0t

1,000 RPM
Senior Member
Aug 5, 2010
1,216
330
683
Kedah
Nice. How are the lights and especially your ICE?
I didn't notice any changes to light brightness. My audio unit is currently under repair, so can't comment on that yet. :tongue: One thing that I notice is when the aircond compressor kicks in, the jerking is less noticeable. Much less. Overall, I'm quite satisfied with the result. I spent only about RM1++ in buying parts. If any of you want to try building this on your own, send me your email and I will send the parts needed and circuit schematics.


vr2turbo

Beyond 20,000 RPM!
Helmet Clan
Moderator

vr2turbo

Beyond 20,000 RPM!
Helmet Clan
Moderator
May 11, 2010
29,628
8,277
1,713
Petaling Jaya
I bought a pivot unit long time ago. Lights like you say not noticeable but my ICE did sound better. The high was clearer and bass was more solid.....:driver:


g4i8y0t

1,000 RPM
Senior Member

g4i8y0t

1,000 RPM
Senior Member
Aug 5, 2010
1,216
330
683
Kedah
I bought a pivot unit long time ago. Lights like you say not noticeable but my ICE did sound better. The high was clearer and bass was more solid.....:driver:

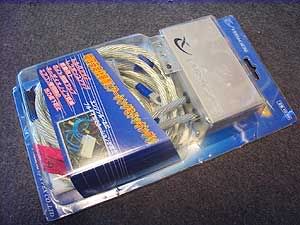

I also bought that Pivot VS some time ago, installed it in my previous car. The blue unit with blue LED isn't it? That one only has about 4 caps inside, forgot the capacitance. Bought it for RM150. After installing that damn thing, I couldn't notice any improvement, what a waste. :mad:


vr2turbo

Beyond 20,000 RPM!
Helmet Clan
Moderator

vr2turbo

Beyond 20,000 RPM!
Helmet Clan
Moderator
May 11, 2010
29,628
8,277
1,713
Petaling Jaya
I also bought that Pivot VS some time ago, installed it in my previous car. The blue unit with blue LED isn't it? That one only has about 4 caps inside, forgot the capacitance. Bought it for RM150. After installing that damn thing, I couldn't notice any improvement, what a waste. :mad:
Yup, the blue one that is attached to battery one......lol:biggrin:


Tom

TIMETOATTACK
Helmet Clan

Tom

TIMETOATTACK
Helmet Clan
Jul 6, 2000
5,460
3,159
5,213
Kuala Lumpur
what a great project and one that is well documented. great work there g4i8y0t, you may want to make more to sell


g4i8y0t

1,000 RPM
Senior Member

g4i8y0t

1,000 RPM
Senior Member
Aug 5, 2010
1,216
330
683
Kedah
what a great project and one that is well documented. great work there g4i8y0t, you may want to make more to sell
Thanks Tom. I have thought about selling this VS, but I'm too busy with work at the moment, no time to do many sets. By the way, I'm still testing its durability. So far no problems.


g4i8y0t

1,000 RPM
Senior Member

g4i8y0t

1,000 RPM
Senior Member
Aug 5, 2010
1,216
330
683
Kedah
My concern now is the caps that I use are only rated to 85 degree C. The 105 degree ones are very hard to find. I worry that they may not last very long as the air temperature under the hood can reach 60-65 degree C on a hot day, in stop and go traffic :confused:. The 85 degree C rating is the absolute temperature limit, it doesn't mean that the caps can withstand that temperature for extended time.

Sep 8, 2013
81
17
508
Kuala Lumpur
Hello fellow petrol heads.

I too have developed my own voltage stabilizer (VS) but I've been quiet about it because of how the public reacts to these devices. No it is not a miracle device that will solve all your electrical stability problems, however it does help.

I built one of these devices because my friend basically threw his broken VS at me and told me to fix it. So I took it apart, analyzed it and figured I could make it better. Having solved his device, I then began designing my own. It is hard to emulate this device with software as a 12V car battery undergoes charging upon acceleration of the throttle (it supplies current and recharges). After going through many analogue builds and testing, I came up with my own device.

Here are some specifications of the device and the capacitors (Japan made) that I use:
- Total capacitance: 18000uF ± 20%
- Operating max temperature: 105°C
- Operating min temperature: -55°C
- ESR per capacitor: 0.104Ω
- Voltage rating of capacitor: 16V
- Current consumption: 7 - 8mA

Now let me begin to explain my device:
Let us begin with a YES; it is only 18000uF but its basically all you need. 16V as a voltage rating for capacitors is all you need as the battery will never reach this value. At a max operating temperature of 105°C, the capacitors will last longer in a car's engine bay as operating conditions can get hot. ESR stands for equivalent series resistance; typically the lower the resistance the better the flow of charge.

Let me explain and show my data behind it (I will try to make it as simple as I can to be understood):

Read this to make sense of the data:
The y-axis is the voltage of the battery and the x-axis is the time. The battery's 12V is attenuated to 1/4 (0.25) of its value to be measured. Example: 3.8 on the y-axis is 15.2V.
The time is sampled with a resolution of 500ms (half a second). Example: 120 on the time scale is 60 seconds in reality.

Test conditions:
The first 120 on x-axis (60 seconds) the car's engine is kept at acceleration or left to idle. From 120 to 360 on x-axis (the next 120 seconds) the car's engine is kept at acceleration or left to idle, the air con is on full, the lights are on full, and the radio is blasting music. This is the excitation period.

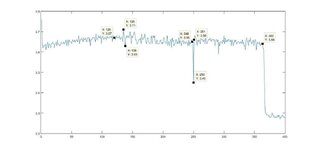

Here are two images of the 12V battery under acceleration and stationary conditions without device and grounding cables:

Figure 1 - Acceleration condition where the engine is kept at 2.5k rpm.

Under acceleration conditions, the oscillations are 200mV or less which is fine. You'll notice a dip between 248 and 251 on the x-axis. This is when the air con fan turns on.

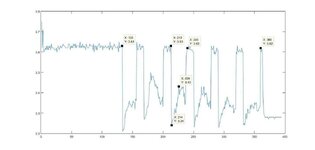

Figure 2 - Stationary condition where the engine is kept at idle, typically around 0.9k rpm for stock cars.
