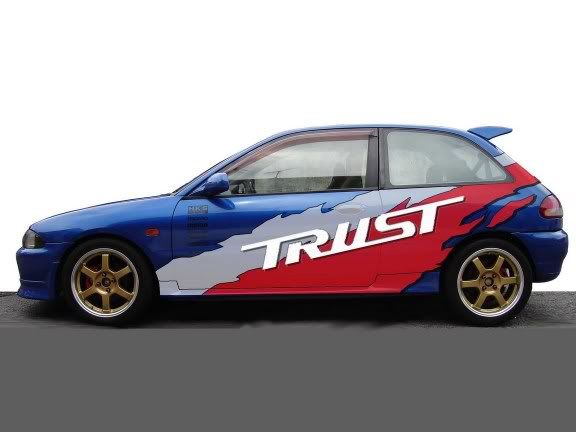

started wit the design process


printed design layout


confirming size n adjustments


spray mount on layout n stick on to sticker n start cutting slowly


once finish first cutout, stick on to the black sticker n cut again wit a 4-5mm gap.

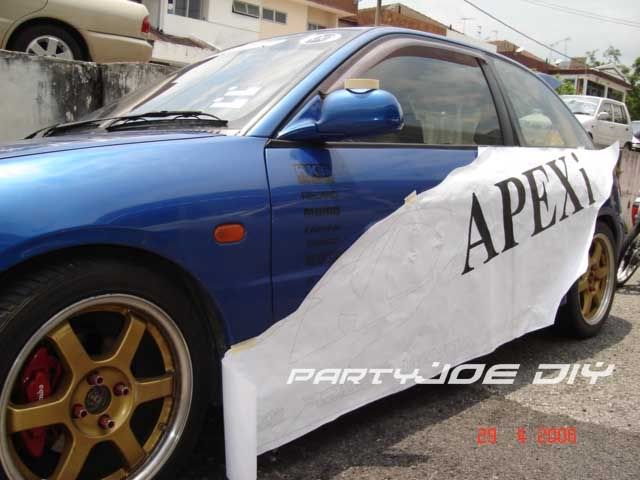

once complete cutting out every piece... stick on wit masking tape to c how it looks.


then proceed sticking it... clean surface properly... make sure no sand particles sticking to it... first cut out door piece first.... then spray soap water to surface... peel sticker off n spray soap water on it as well.. stick to surface n adjust... then use the plastic scrapper n drain out the air bubble n soap water off the sticker... repeat until all bubble are out... if stil there use a pin...

Last edited:

partyJOE

2,000 RPM
Senior Member

partyJOE

2,000 RPM
Senior Member
Thread starter
Nov 10, 2004
2,221
0
3,136
Kuala Lumpur
Visit site
one side almost done... took me almost 3 hours... sighhh... its more tougher then i tough it wud...


after another 2 hour plus... got the the other side done as well... job completed...
backache cos too much of squatting... really tiring...

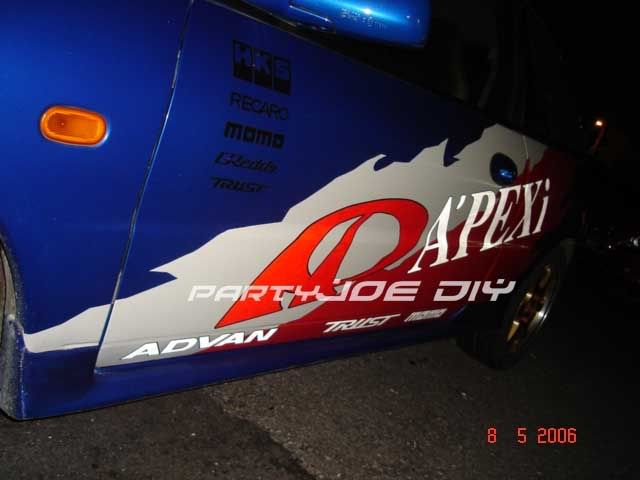

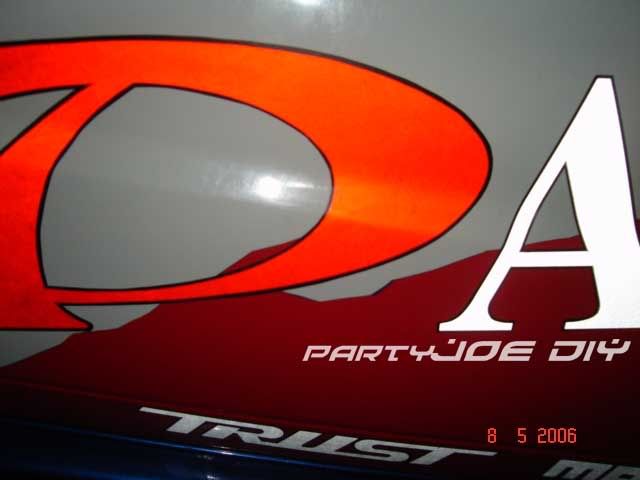

close up shot on the detailing

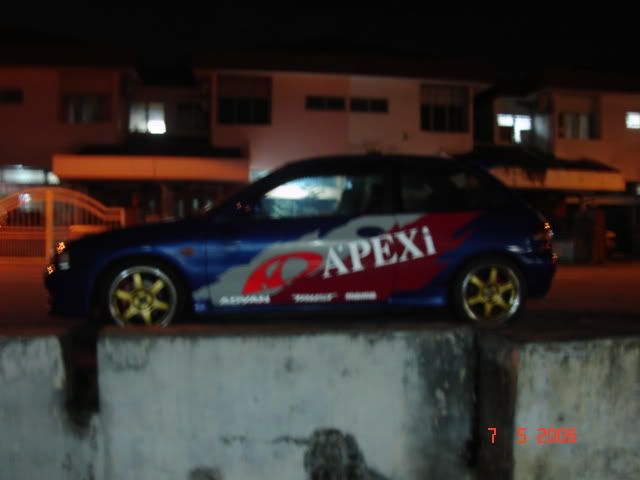

nite shots... glow in the dark... hope no cops wil stop me...


Last edited:

partyJOE

2,000 RPM
Senior Member

partyJOE

2,000 RPM
Senior Member
Thread starter
Nov 10, 2004
2,221
0
3,136
Kuala Lumpur
Visit site

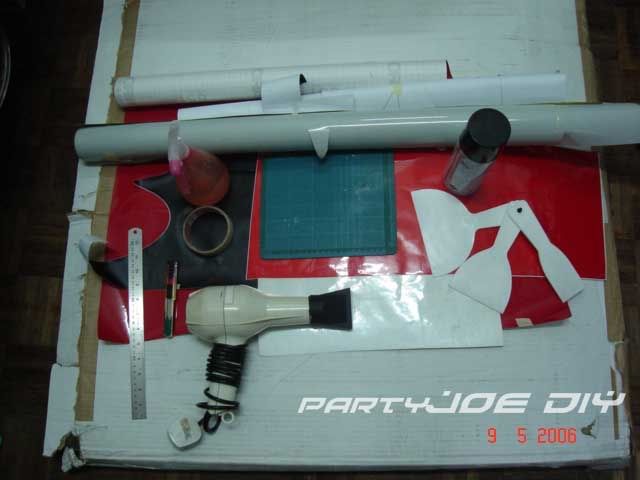

needed items

1. vynil stickers- bought from Arcrylic Signage in Pasar Rd...
i) red - 2.5 m
ii) light grey - 2m
iii) reflective white - 1m
iv) reflective red - 1m
v) black matt finish -1.5m
2. Blade (nt cutter)
3. spray mount
4. cutting mat... cardboard box use as big cutting mat
5. steel ruler
6. plastic scrapper
7. soap water in spray nozzle bottle
8. hair dryer
9. masking tape

n above all dat u need a pair of artistic hands... looks familiar ha..... WCC style.... hahaha


total cost of this project is rm135 for stickers... quiet expensive...but worth the experience...
still need to sticker the door opener n the side skirts... will update in the near future...

Last edited:

nitrus

2,000 RPM
Senior Member

nitrus

2,000 RPM
Senior Member
Nov 14, 2005
2,895
35
1,648
wow... u DIY-ed the decals? not bad... Where u get the large sized stickers to cut?


nitrus

2,000 RPM
Senior Member

nitrus

2,000 RPM
Senior Member
Nov 14, 2005
2,895
35
1,648
maybe he's proud of using Apexi stuff leh... chill laa.. lolz... first thing is, can other ppl do it anot? hehehh... art sense...


gohkokeng

2,000 RPM
Senior Member

gohkokeng

2,000 RPM
Senior Member
Feb 21, 2006
2,445
4
1,638
i saw a Kelisa with red paint.....whole car is coca-cola looks.......haha looks damn attractive.......i wonder if he went to coca-cola company and help them advertise got money to take somemore got cool sticker......haha


ken yeang

6,000 RPM
Senior Member

ken yeang

6,000 RPM
Senior Member
Feb 2, 2006
6,618
1,327
1,713
if got money, i don't mind advertising for any company on my car....even woman's sanitary pad brands oso can......LOL


nitrus

2,000 RPM
Senior Member

nitrus

2,000 RPM
Senior Member
Nov 14, 2005
2,895
35
1,648
InitialD said:
Whoah! Very cool! How come the word Apexi is reversed on the right hand side of the car?
i think its common practise on most designs on show cars...


donCityZ

2,000 RPM
Senior Member

donCityZ

2,000 RPM
Senior Member
Feb 8, 2006
2,230
33
1,648
gohkokeng said:
lol u helping Apexi to advertise....... getting benefit from Apexi?

hahaha
goh bro.. jealous izzit? hehe. i know u car plain only. ahhahaa!!

party joe... nice JOB!.. u can make bizniz oledi lo. i support u!


tuckz

Known Member
Senior Member

tuckz

Known Member
Senior Member
Apr 19, 2006
151
0
1,516
Honestly speaking, i don't think only Goh will be jealous
Even i am jealous
party joe did such a good work
I think he must surely be enjoying driving his car out
Keep up the good work and continue posting updates of ur DIY decals


gohkokeng

2,000 RPM
Senior Member

gohkokeng

2,000 RPM
Senior Member
Feb 21, 2006
2,445
4
1,638
donCityZ haha not jealous la....

my car also advertising for BROTHERS.....got scorpian sticker......

damn i stick for a damn purpose.......still remember a hot thread named Girl/Lady/Woman/Female driver for those senior members here? and thanks to TOE PECK my thread baned.


howiechoo

8,000 RPM
Senior Member

howiechoo

8,000 RPM
Senior Member
Jul 25, 2004
8,857
4
3,138
Bukit Jalil
how did u print the lines to cut in such a big size? pplotter?


howiechoo

8,000 RPM
Senior Member

howiechoo

8,000 RPM
Senior Member
Jul 25, 2004
8,857
4
3,138
Bukit Jalil
wah..where u get the plotter? next time i also design 1 then can u help me to print it? lolz....


FoarGeez

Known Member
Senior Member

FoarGeez

Known Member
Senior Member
Jun 20, 2005
431
6
1,518
Koala Loompour
wahaha... salute u la bro... from 8inch sticker right up to the whole car... wish i got the time like u...


chilskater

Guest
C

chilskater

Guest
it's hard to adjust the place to put..i mean if the sticker is complicated design..like tribal design..i want to DIY buy my hand wasnt design for DIY sticker cutting..it was for other purposes :)


imoloq

1,000 RPM
Senior Member

imoloq

1,000 RPM
Senior Member
Nov 1, 2005
1,069
25
1,648
Maybe you can ask other people cut for u. Take it to ur tailor if you have to. They are very precise in cutting stuff heheheh


singchaii

500 RPM
Senior Member

singchaii

500 RPM
Senior Member
Sep 3, 2005
687
0
1,516
Pandan Jaya, KL
Errr.. Do you stay in KL? I saw your car today 7pm something at ipoh road.. It look nice on that decal when i see in real eye when i driving jz now.


TiBuN

Known Member
Senior Member

TiBuN

Known Member
Senior Member
May 16, 2004
482
0
3,016
Penang / BM
Visit site
Wow nice, if you complete the door opener and the boot area, then it'll be perfect ^.^


partyJOE

2,000 RPM
Senior Member

partyJOE

2,000 RPM
Senior Member
Thread starter
Nov 10, 2004
2,221
0
3,136
Kuala Lumpur
Visit site
aiyoh....totally forgot abt this thread...

FoarGeez... thx G.... yes this DIY is very time consuming... 1 weekend to cut n another weekend to stick it up..

Racing Rhythm... yr PM replied...

chilskater... dats u have 2 apply soap water first so dat u have a few minute to adjust them b4 it dries...


Herbie

500 RPM
Senior Member

Herbie

500 RPM
Senior Member
Jan 19, 2006
744
0
1,516
:cry_smile: joe .. now i got a idea how to make it now thank you for sharing with us .. exactly i dont know u have a ya own d.i.y thread u`re not kedekut ilmu like other taiko only lafing at newbie.. and i really enjoy reading ya thread..and know i know how u make it ..but the prob. is the printer ...hmm ..help me to print bro? can ? at my office only can print A4 & A3.. coz my office only print a latter.. goverment biasa la.. :regular_smile:

LONG LIVE KING D.I.Y:cyclops:


Herbie

500 RPM
Senior Member

Herbie

500 RPM
Senior Member
Jan 19, 2006
744
0
1,516
HAHAHHA.. GOOD MORNING EVERYONE.. i got a good news.. first thing thanks to sifu partyJOE.. after im reading ya tread .. i go to stickershop and asking for a side front door sticker costum made .. and the tauke asking for rm20 for 5 costum sticker not a reflex 1 .. if want reflex cost rm50 per door.. im asking why so expensive .. the tauke say to me if u want cheap go brothers laa.. rm25 plastic sticker ... so i remember partyJOE tread and it give me a confident.. so i go to sighboard shop and buying HIGH QUALITY 3m brand signboard sticker 1x3feet reflex white for RM12only.. and design a sticker ..



then learn how to cut them ..



my first sticker ...



semakin BANYAK



complete set for a front side goor sticker





THANKS JOE..
thank you very much...
domo arigato konzaimas:cry_smile:

LONG LIFE KING OF D.I.Y

Last edited:

Herbie

500 RPM
Senior Member

Herbie

500 RPM
Senior Member
Jan 19, 2006
744
0
1,516
here is it my new update ...

sifu partyJOE .. tumpang lalu

100% D.I.Y


Herbie

500 RPM
Senior Member

Herbie

500 RPM
Senior Member
Jan 19, 2006
744
0
1,516
D.i.y Or D.i.e

FROM A TO Z

my First Sticker



comple side sticker



the harders part



almose DONE!!~



previos my side door sticker .. baru nak tampal



and the last sticker



complete




need some time to take overall pic.. coz need to capture with digital camera ..
all picture taken by phone camera...
:tongwink:


nitrus

2,000 RPM
Senior Member

nitrus

2,000 RPM
Senior Member
Nov 14, 2005
2,895
35
1,648
cool .... nicely DIY ...... anyway juz wondering, which part of HKS are u using on ur car..? :hmmmm:


Herbie

500 RPM
Senior Member

Herbie

500 RPM
Senior Member
Jan 19, 2006
744
0
1,516
nitrus said:
cool .... nicely DIY ...... anyway juz wondering, which part of HKS are u using on ur car..? :hmmmm:
my exjoz lo bro .. small car with a day dream..


FoarGeez

Known Member
Senior Member

FoarGeez

Known Member
Senior Member
Jun 20, 2005
431
6
1,518
Koala Loompour
aiyo macha... juz one question.. how u keep yr hands so steady... tell me laaa.. PM me if hafto...! hehe... i juz wanna do d zth bomberman.. many pieces gone d.. sigh..


partyJOE

2,000 RPM
Senior Member

partyJOE

2,000 RPM
Senior Member
Thread starter
Nov 10, 2004
2,221
0
3,136
Kuala Lumpur
Visit site
FoarGeez said:
aiyo macha... juz one question.. how u keep yr hands so steady... tell me laaa.. PM me if hafto...! hehe... i juz wanna do d zth bomberman.. many pieces gone d.. sigh..
how ah... just don TaFeKei 2 much lor.. hihi... jk jk
just put alot of attention....hold the blade softly n more it as slow s possible lor... practice makes perfect...


Herbie

500 RPM
Senior Member

Herbie

500 RPM
Senior Member
Jan 19, 2006
744
0
1,516
PutraSparco said:
Bro.. can you please tell me where you bought the stickers? I really need to buy some...
if area kajang go to the near of hugo after flyover u can see a sighboard shop ..

price: for 3M high quality sticker

no reflex- any colour price for 1x1 feet rm3.50
reflex - any colour 1x1feet rm6


chilskater

Guest
C

chilskater

Guest
i used to make skateboard logo sticker not reflex one..then i stop skating..stop stickering..now keretaing wanna do stickering again...


Herbie

500 RPM
Senior Member

Herbie

500 RPM
Senior Member
Jan 19, 2006
744
0
1,516
rite now u must learn to cut a car brand sticker lo .. huhuHUHUhu
