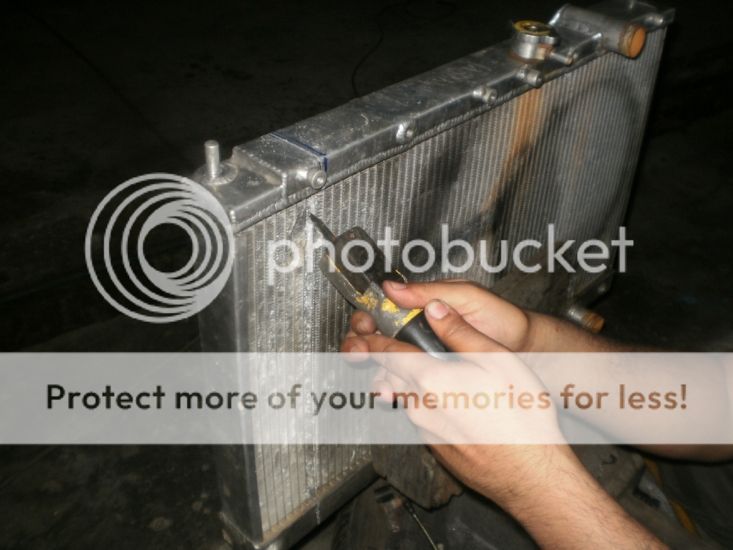

Update....cut out some row radiator to big,cut at dented row coz wastegate...




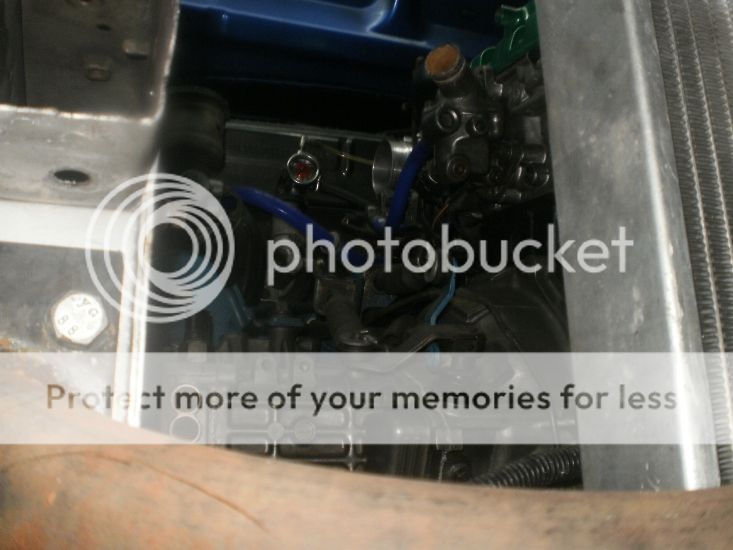

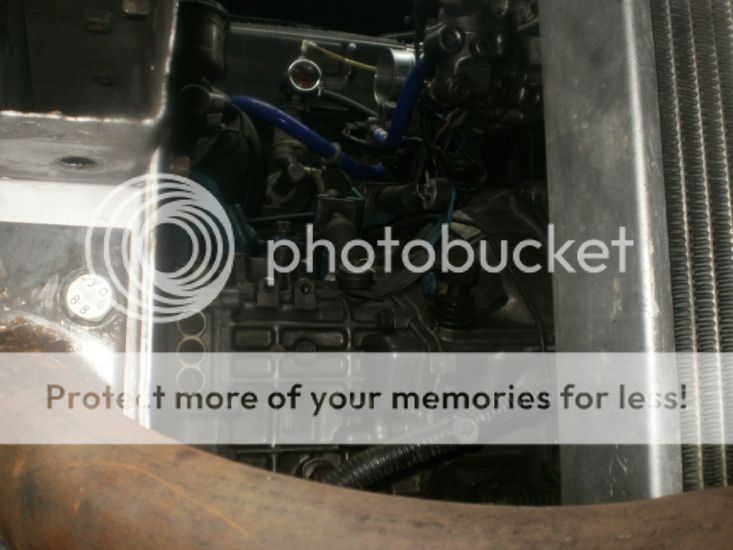

try fitting radiator...now here maximum clearance can get...

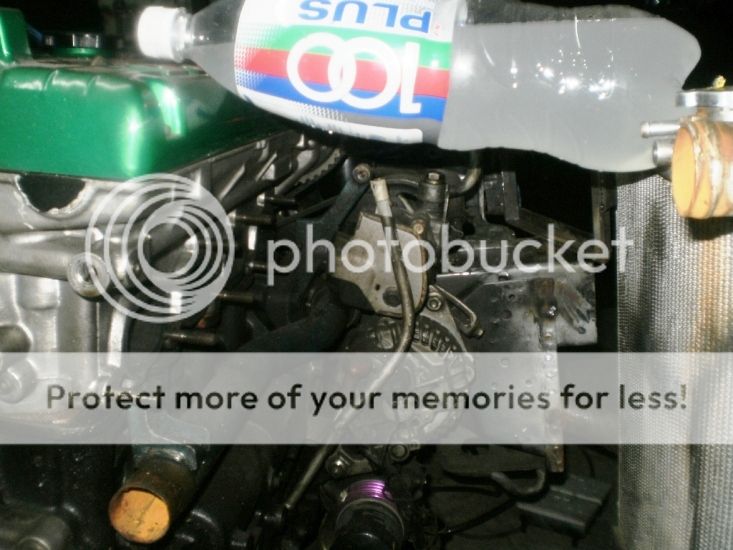

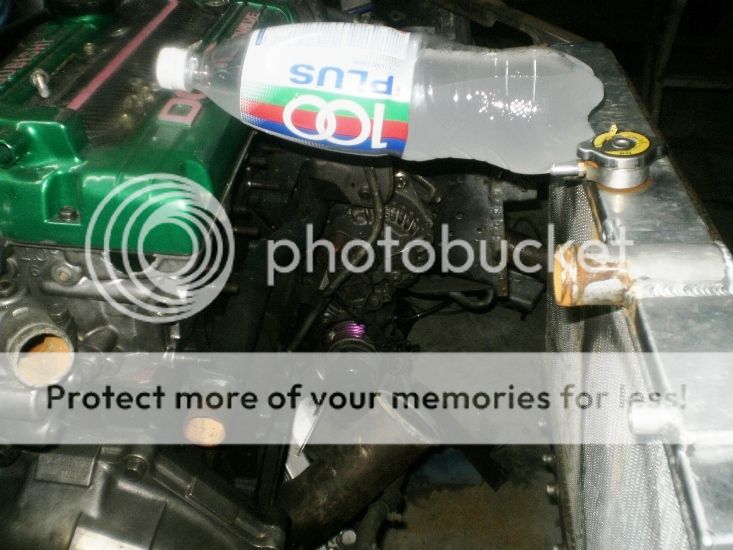

Now enough room...:smokin:


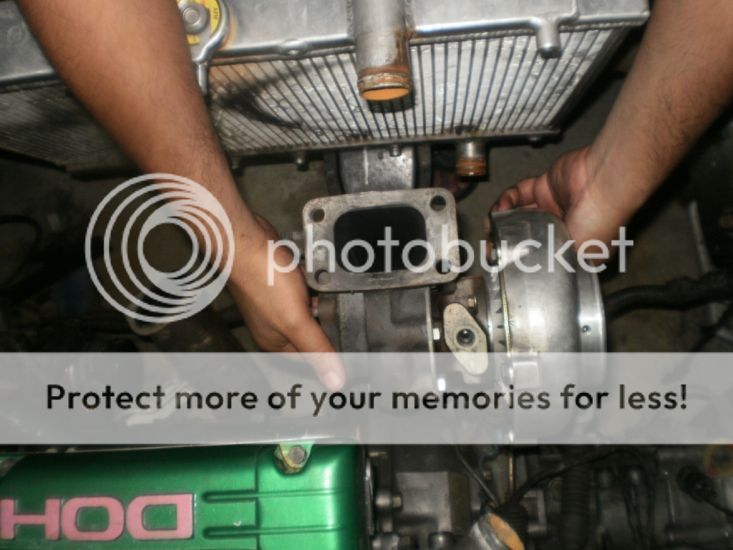

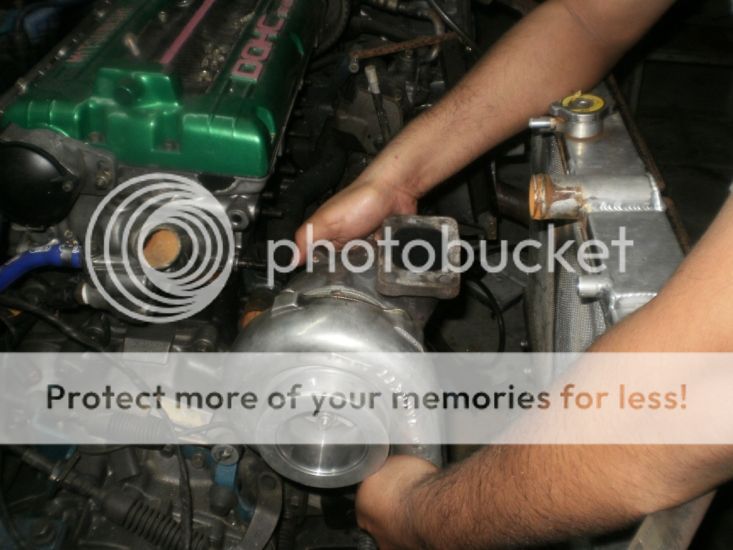

Plan to locate turbo here,move far from engine block...is it ok?...dont worry about top radiator hose..




Passing pipe after intercooler will go..shot and lot of room...






virqai

5 Year | Silver

virqai

5 Year | Silver
Dec 30, 2010
206
393
516
Kuala Lumpur
Frame done...need to paint tomorrow...before paint try to fit with bumper etc...some pics










Next work..make Banana Tanduk for turbo...:banghead:


virqai

5 Year | Silver

virqai

5 Year | Silver
Dec 30, 2010
206
393
516
Kuala Lumpur
No mode to paint job...:hmpf:so try to relocate turbo for start custom header soon...










Try turn a bit degree...i think i like this position...




Crossmember work..






Thanks... Pomen GTR for always support this tread:adore:

Last edited:

virqai

5 Year | Silver

virqai

5 Year | Silver
Dec 30, 2010
206
393
516
Kuala Lumpur
Great job bro.

Nice practical thinking. Measure TWICE.. cut ONCE :wavey:

Need to get TIG set..
:banghead: :banghead:
Thanks amel,ya dont want to make same thing twice...coz job like this sometime coz only 1cm mistake need long day to redo...hu..hu..hu..

now small TIG set for S.steel not so expensive..can take 1 la...:biggrin:


basikal_pancit

Senior Member
Senior Member

basikal_pancit

Senior Member
Senior Member
Apr 7, 2005
603
54
1,516
Selangor
Man
since it is done by our local, not many willing to pay for it i must say, takut not quality enough. Just imagine u put AMS mark on it, sure a lot will pay fot it..

Anyway, GOOD JOB bro! Really need more of your kind in our motorsport industries.

Btw, is the car for track or daily driving?


virqai

5 Year | Silver

virqai

5 Year | Silver
Dec 30, 2010
206
393
516
Kuala Lumpur
So busy...a bit update for header work...










some pipe start to 1st weld without filler...












2nd weld with filler...i need to filler more thicker then pipe for buffing and polish






virqai

5 Year | Silver

virqai

5 Year | Silver
Dec 30, 2010
206
393
516
Kuala Lumpur
3 part weld to be one...after grind,sanding and minor polishing...



i'd like the spot turn to blue..but sometime can sometime not...:bawling:






punk

Senior Member
Senior Member

punk

Senior Member
Senior Member
Aug 6, 2011
361
76
528
Negeri Sembilan
Hey bro, nice welding there..
my bro jus give me sample pipe that u use, very heavy man...
Any reason u use that thick pipe??is it because of high boost durability??


virqai

5 Year | Silver

virqai

5 Year | Silver
Dec 30, 2010
206
393
516
Kuala Lumpur
Hey bro, nice welding there..
my bro jus give me sample pipe that u use, very heavy man...
Any reason u use that thick pipe??is it because of high boost durability??
Ya..hey punk..thanks :thrasher:...i use 304 gred,3mm thick stn.stell..like usual other exs fabricator use..
nope.. its not to heavy for me..compare oem header...but for sure all depend for header design.if log type sure really light...more long,more material right...but u can just imagine if its cas iron, all runner 17"length(out side conner) x 4 =68"=5.6'...weight???
reason...need more hot and lasting from band,twist,crack(if wrap) when hot,can hold more turbo weight..
Hope other Sifu also can help to answer your question...:nurse:


iswara204

Senior Member
Senior Member

iswara204

Senior Member
Senior Member
Feb 2, 2006
545
13
1,516
whoa!!! this is awesome work! and not mentioning, all the sweat and the brain drain! Kudos!! any final pic of the finish??
